📌 LogFC Correlation Analysis
This analysis generates correlation heatmaps of log fold change (logFC) values across different comparisons.
📌 Load Required Libraries
library(ComplexHeatmap)Warning: package 'ComplexHeatmap' was built under R version 4.3.1library(tidyverse)Warning: package 'tidyverse' was built under R version 4.3.2Warning: package 'ggplot2' was built under R version 4.3.3Warning: package 'tidyr' was built under R version 4.3.3Warning: package 'readr' was built under R version 4.3.3Warning: package 'purrr' was built under R version 4.3.1Warning: package 'dplyr' was built under R version 4.3.2Warning: package 'stringr' was built under R version 4.3.2Warning: package 'lubridate' was built under R version 4.3.1library(data.table)Warning: package 'data.table' was built under R version 4.3.2📌 Load LogFC Data
# Load logFC data from CSV
logFC_corr <- read.csv("data/LOG2FC.csv")
# Convert to dataframe
logFC_corr_df <- data.frame(logFC_corr)
# Remove 'X' prefix from the first column
names(logFC_corr_df)[1] <- sub("^X", "", names(logFC_corr_df)[1])
# Convert to matrix format for correlation analysis
log2corr <- as.matrix(logFC_corr_df[, -1])
# Display first few rows
print(head(log2corr)) CX.5461_0.1_3 CX.5461_0.1_24 CX.5461_0.1_48 CX.5461_0.5_3 CX.5461_0.5_24
[1,] 0.004014353 0.01797208 0.1843569 0.02720364 0.01672747
[2,] 0.175440414 0.09122136 0.2212550 -0.18005874 -0.11889672
[3,] 0.078881609 0.07834693 0.2786495 -0.08765174 0.10414165
[4,] 0.178167060 0.16311897 0.1577607 -0.17199420 -0.14578900
[5,] 0.303563222 0.10207047 0.3053246 -0.06573953 0.49701105
[6,] 0.152614389 0.04773016 0.1732226 -0.26468304 -0.09250807
CX.5461_0.5_48 DOX_0.1_3 DOX_0.1_24 DOX_0.1_48 DOX_0.5_3 DOX_0.5_24
[1,] 0.05809672 0.08247267 0.2200048 0.2815441 0.115454181 0.1581417
[2,] -0.03169605 -0.13564062 -0.1407592 -0.2064884 -0.195284631 -0.9096266
[3,] -0.11362867 0.09288180 0.2546936 0.3313280 0.006547797 0.2891939
[4,] -0.21285541 -0.13223667 -0.2684351 -0.2338832 -0.192421781 -0.5155552
[5,] -0.37877928 -0.09045264 0.1014059 0.4197312 0.177886764 0.4371439
[6,] -0.08389116 -0.09231344 -0.2104519 -0.1243965 -0.375429448 -0.5502692
DOX_0.5_48
[1,] 0.4372001
[2,] -1.3556420
[3,] 0.3328763
[4,] -0.9117574
[5,] 0.1966726
[6,] -0.7475815📌 Load Metadata
# Load metadata
meta <- read.csv("data/Meta.csv")
# Assign column names based on sample metadata
colnames(log2corr) <- meta$Sample
Drug <- meta$Drug
time <- meta$Time
conc <- as.character(meta$Conc.)📌 Define Color Annotations for Heatmap
time_colors <- c("3" = "purple", "24" = "pink", "48" = "tomato3")
drug_colors <- c("CX-5461" = "yellow", "DOX" = "magenta4")
conc_colors <- c("0.1" = "lightblue", "0.5" = "lightcoral")
# Create annotations
top_annotation1 <- HeatmapAnnotation(
timepoints = time,
drugs = Drug,
concentrations = conc,
col = list(
timepoints = time_colors,
drugs = drug_colors,
concentrations = conc_colors
)
)📌 Compute Pearson and Spearman Correlation Matrices
cor_matrix1 <- cor(log2corr, method = "pearson")

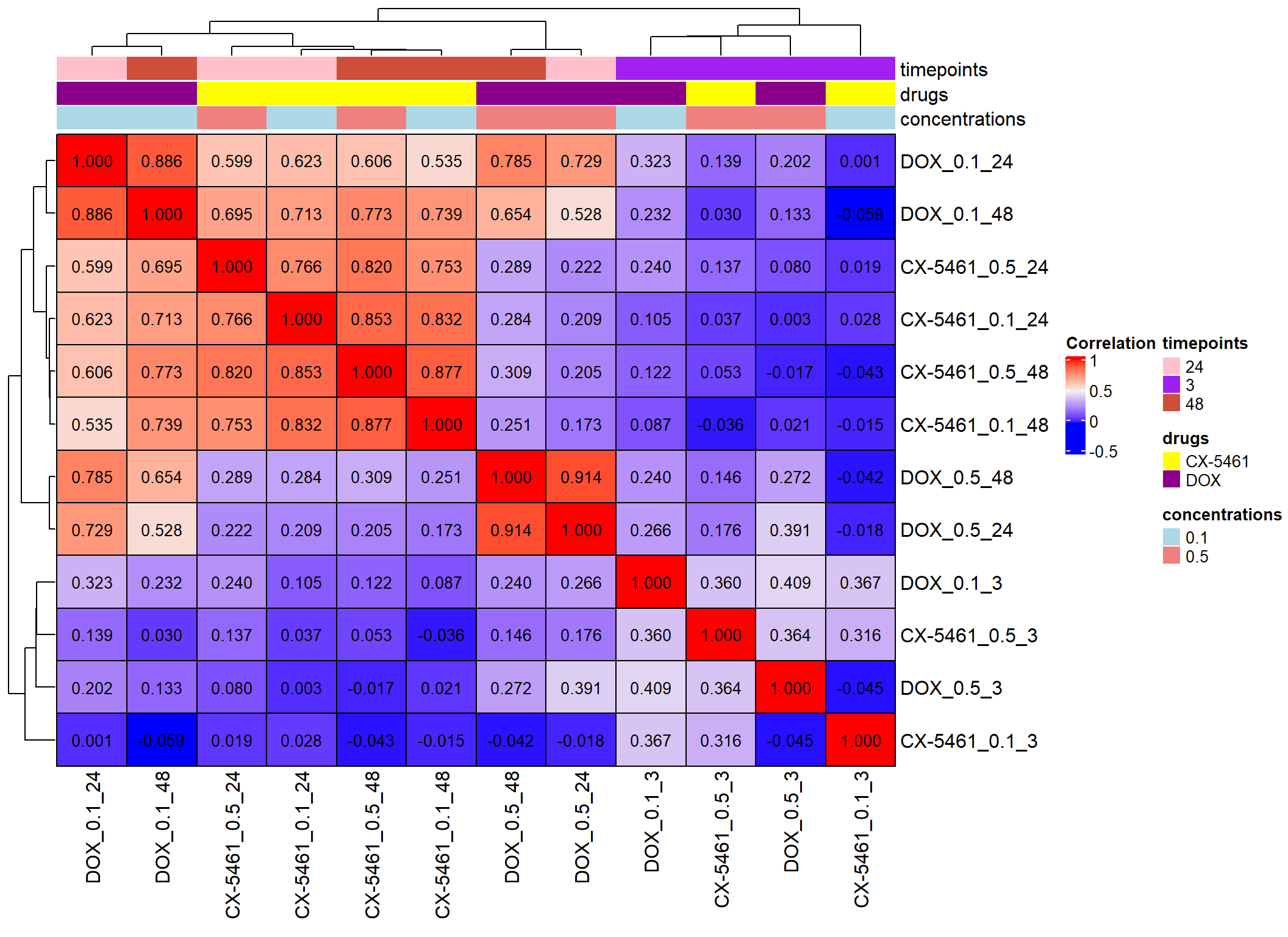

cor_matrix2 <- cor(log2corr, method = "spearman")📌 Generate Heatmap (Pearson Correlation)
heatmap1 <- Heatmap(
cor_matrix1,
name = "Correlation",
top_annotation = top_annotation1,
rect_gp = gpar(col = "black", lwd = 1),
show_row_names = TRUE,
show_column_names = TRUE,
cell_fun = function(j, i, x, y, width, height, fill) {
grid.text(sprintf("%.3f", cor_matrix1[i, j]), x, y, gp = gpar(fontsize = 10, col = "black"))
}
)
# Draw the heatmap
draw(heatmap1)
| Version | Author | Date |
|---|---|---|
| 7f3dfe5 | sayanpaul01 | 2025-02-07 |

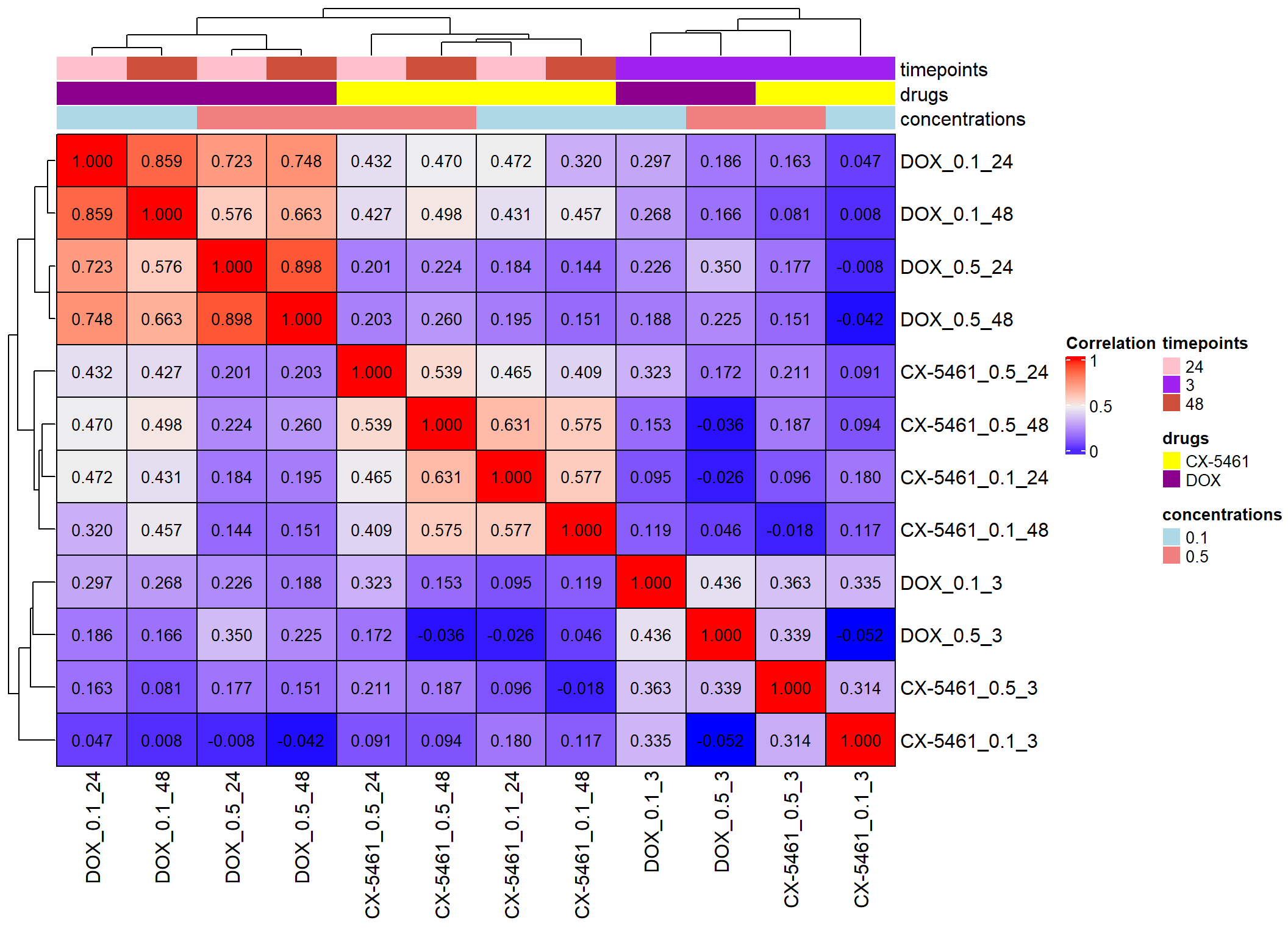

📌 Generate Heatmap (Spearman Correlation)
heatmap2 <- Heatmap(
cor_matrix2,
name = "Correlation",
top_annotation = top_annotation1,
rect_gp = gpar(col = "black", lwd = 1),
show_row_names = TRUE,
show_column_names = TRUE,
cell_fun = function(j, i, x, y, width, height, fill) {
grid.text(sprintf("%.3f", cor_matrix2[i, j]), x, y, gp = gpar(fontsize = 10, col = "black"))
}
)
# Draw the heatmap
draw(heatmap2)
| Version | Author | Date |
|---|---|---|
| 7f3dfe5 | sayanpaul01 | 2025-02-07 |
