📌 Load Required Libraries

library(tidyverse)
library(ggfortify)
library(ggplot2)
library(cluster)
library(edgeR)
library(limma)
library(Homo.sapiens)
library(BiocParallel)
library(qvalue)
library(pheatmap)
library(clusterProfiler)
library(AnnotationDbi)
library(org.Hs.eg.db)
library(RColorBrewer)
library(readr)
library(TxDb.Hsapiens.UCSC.hg38.knownGene)
library(DOSE)

# Load UCSC transcript database
txdb <- TxDb.Hsapiens.UCSC.hg38.knownGene

📌 Read and Process Data

# Load the saved datasets
prob_all_1 <- read.csv("data/prob_all_1.csv")$Entrez_ID
prob_all_2 <- read.csv("data/prob_all_2.csv")$Entrez_ID
prob_all_3 <- read.csv("data/prob_all_3.csv")$Entrez_ID
prob_all_4 <- read.csv("data/prob_all_4.csv")$Entrez_ID

CX_0.1_3 <- read.csv("data/DEGs/Toptable_CX_0.1_3.csv")
background<-as.character(CX_0.1_3$Entrez_ID)

📌 Non response

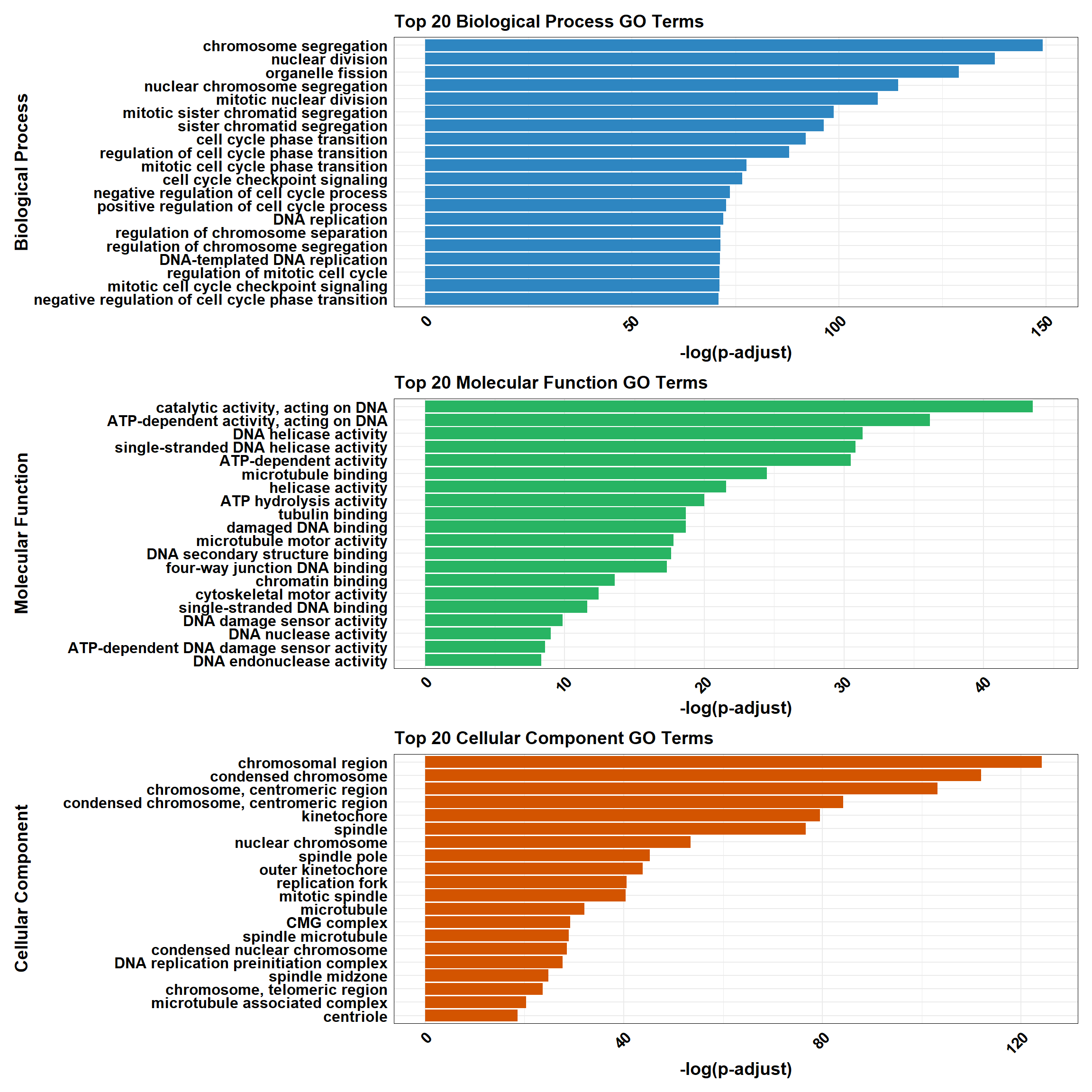

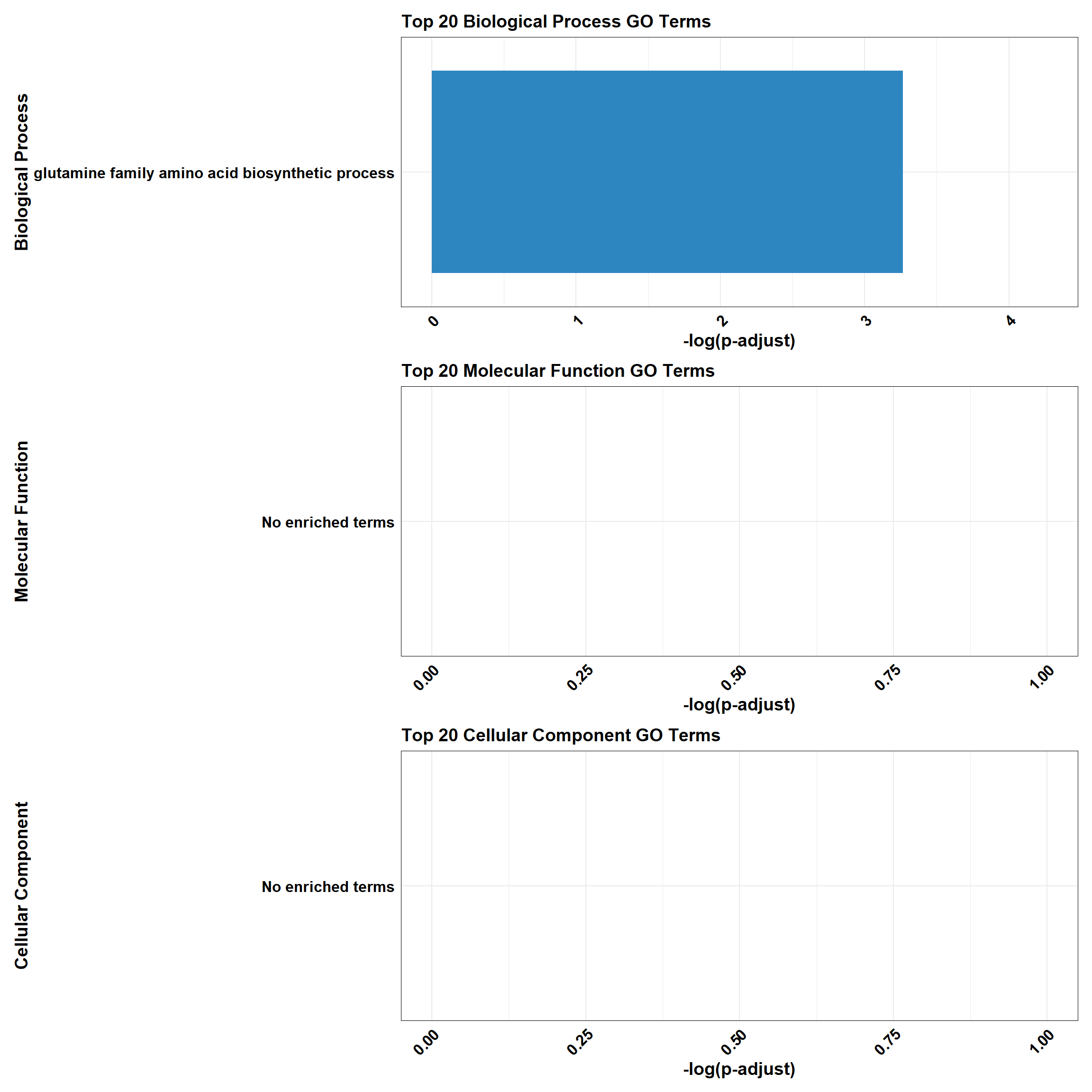

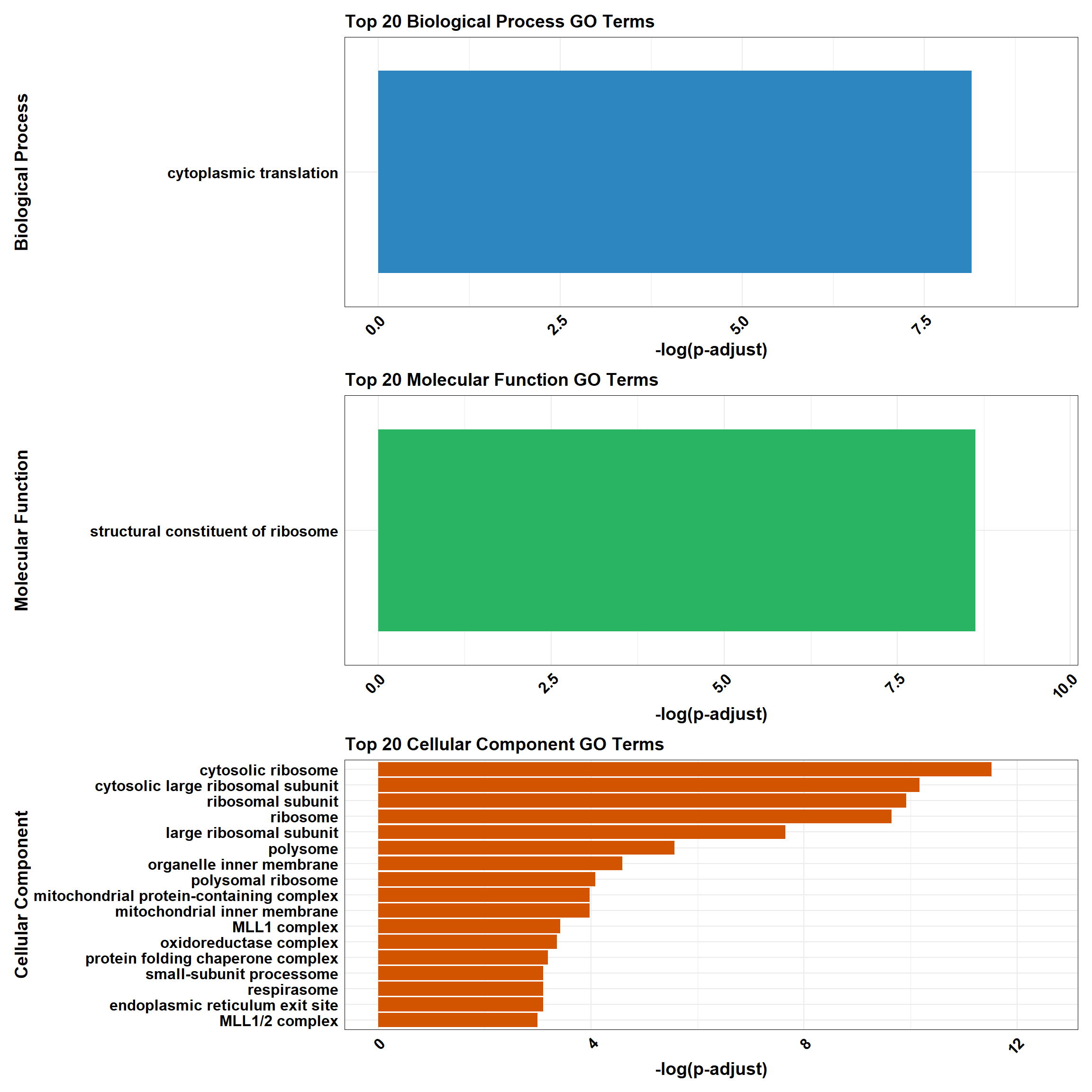

📌 Non response GO Enrichment Clusterprofiler

# Perform GO enrichment analysis for BP, MF, and CC
go_enrichment_BP <- enrichGO(gene = prob_all_1,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "BP",
                             pvalueCutoff = 0.05)

go_enrichment_MF <- enrichGO(gene = prob_all_1,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "MF",
                             pvalueCutoff = 0.05)

go_enrichment_CC <- enrichGO(gene = prob_all_1,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "CC",
                             pvalueCutoff = 0.05)

# Convert each enrichment result to a tibble, add a category column, and select top 20 terms
process_enrichment_tibble <- function(enrichment, category) {
  if (is.null(enrichment) || nrow(as.data.frame(enrichment)) == 0) {
    return(tibble(Description = "No enriched terms", neglog = 0, Category = category))
  } else {
    enrichment %>%
      as_tibble() %>%
      mutate(Category = category,
             neglog = -log(p.adjust)) %>% # Add -log(p.adjust) column
      arrange(desc(neglog)) %>%          # Sort by -log(p.adjust)
      slice(1:20)                        # Select top 20 terms
  }
}

BP_Tibble <- process_enrichment_tibble(go_enrichment_BP, "Biological Process")
MF_Tibble <- process_enrichment_tibble(go_enrichment_MF, "Molecular Function")
CC_Tibble <- process_enrichment_tibble(go_enrichment_CC, "Cellular Component")

# Combine all tibbles
combined_GO_Tibble <- bind_rows(BP_Tibble, MF_Tibble, CC_Tibble)
# Function to generate enrichment plots
process_enrichment_plot <- function(tibble, title, color) {
  ggplot(data = tibble, aes(x = neglog, y = reorder(Description, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log(p-adjust)",
         y = title,
         title = paste("Top 20", title, "GO Terms")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black"),
      panel.border = element_rect(colour = "black", fill = NA, size = 0.3)
    ) +
    xlim(c(0, max(tibble$neglog) + 1))
}

# Generate separate plots
plot_BP <- process_enrichment_plot(BP_Tibble, "Biological Process", "#2E86C1")
Warning: The `size` argument of `element_rect()` is deprecated as of ggplot2 3.4.0.
ℹ Please use the `linewidth` argument instead.
This warning is displayed once every 8 hours.
Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
generated.
plot_MF <- process_enrichment_plot(MF_Tibble, "Molecular Function", "#28B463")
plot_CC <- process_enrichment_plot(CC_Tibble, "Cellular Component", "#D35400")

# Combine the plots using patchwork
combined_plot <- plot_BP / plot_MF / plot_CC

# Display the combined plot
combined_plot

Version Author Date
fc2db42 sayanpaul01 2025-02-24

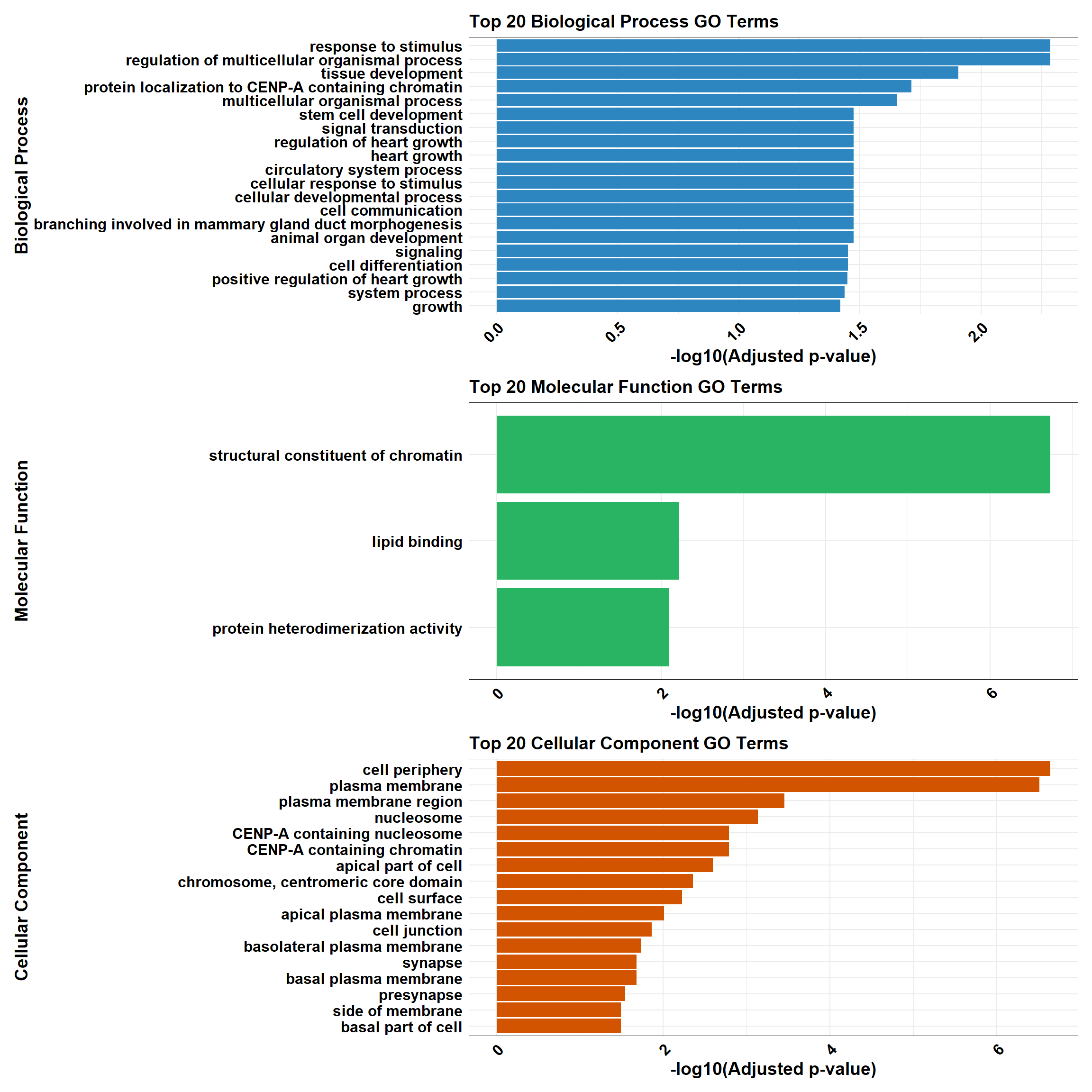

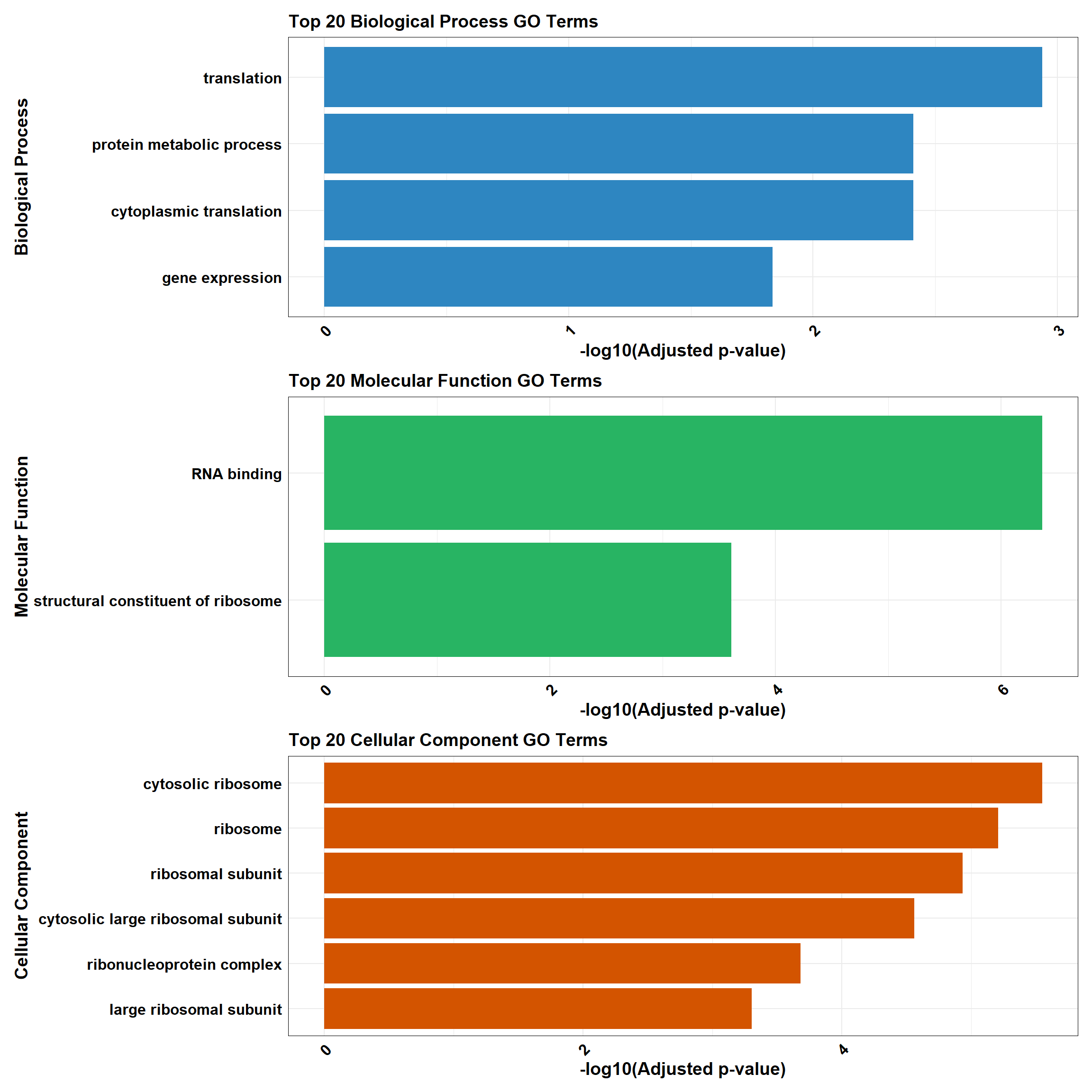

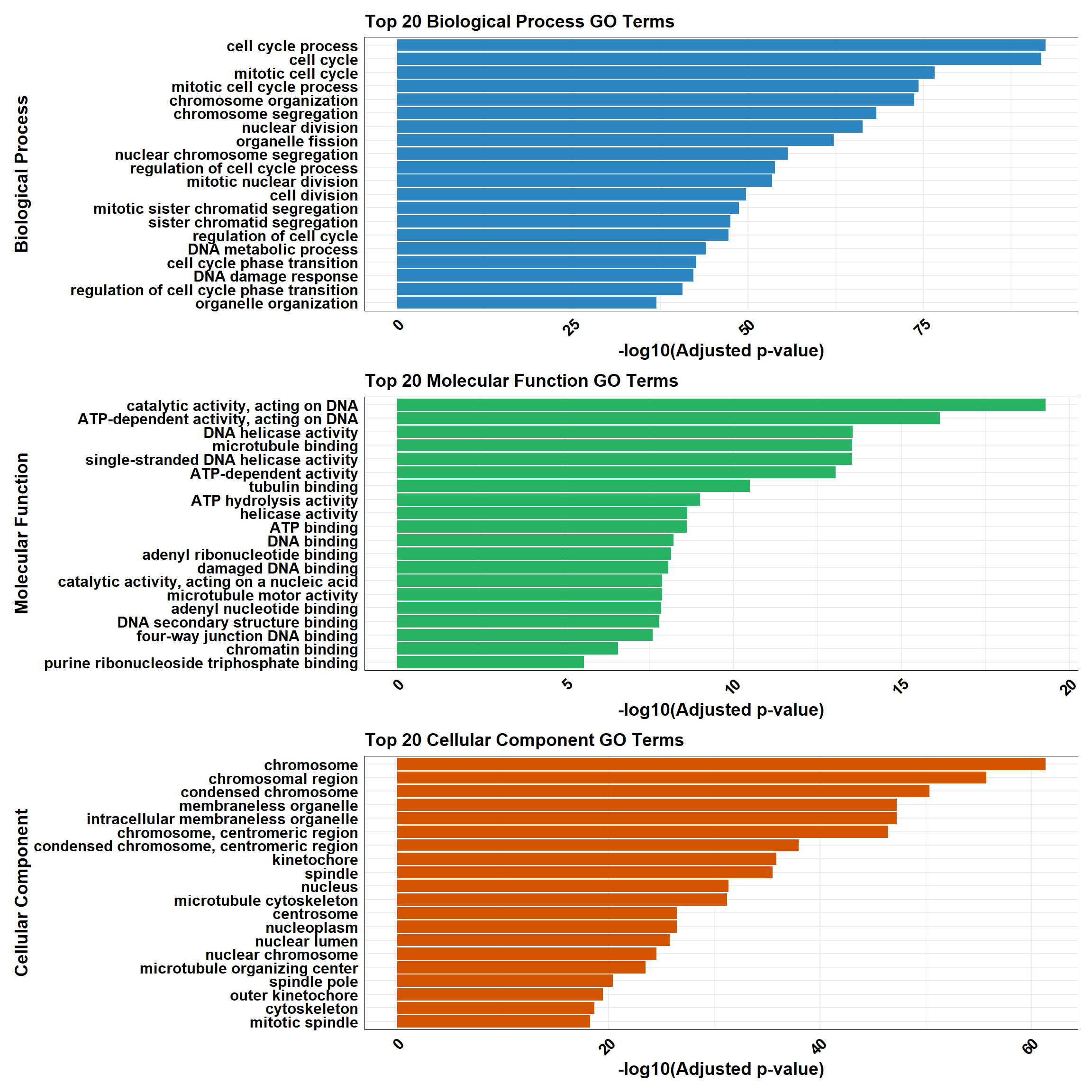

📌 Non response GO Enrichment g:Profiler

# Load the gprofiler2 package
library(gprofiler2)
Warning: package 'gprofiler2' was built under R version 4.3.3
library(ggplot2)
library(dplyr)
library(patchwork)
Warning: package 'patchwork' was built under R version 4.3.3
# Perform GO enrichment analysis with gprofiler2
gost_results <- gost(
  query = prob_all_1,           # List of input genes (prob_all_1)
  organism = "hsapiens",   # Human organism
  user_threshold = 0.05,   # Adjusted p-value cutoff
  correction_method = "fdr", # Multiple testing correction
  domain_scope = "custom", # Use custom background
  custom_bg = background,    # Background set of genes
  sources = c("GO:BP", "GO:MF", "GO:CC") # Analyze GO categories
)

# Check if enrichment results exist
if (is.null(gost_results$result) || nrow(gost_results$result) == 0) {
  # If no enriched terms, create a placeholder dataframe
  combined_results <- tibble(
    term_name = "No enriched terms",
    p.adjust = NA,
    source = "N/A",
    Category = "N/A"
  )
} else {
  # Convert results to a data frame
  gost_results_df <- gost_results$result

  # Add a column for adjusted p-value
  gost_results_df <- gost_results_df %>%
    rename(p.adjust = p_value)

  # Separate results for BP, MF, and CC
  BP_results <- gost_results_df %>%
    filter(source == "GO:BP") %>%
    mutate(Category = "Biological Process")

  MF_results <- gost_results_df %>%
    filter(source == "GO:MF") %>%
    mutate(Category = "Molecular Function")

  CC_results <- gost_results_df %>%
    filter(source == "GO:CC") %>%
    mutate(Category = "Cellular Component")

  # Select the top 20 terms by adjusted p-value for each category
  top_BP <- BP_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  top_MF <- MF_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  top_CC <- CC_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  # Combine all categories
  combined_results <- bind_rows(top_BP, top_MF, top_CC)
}

# Ensure all columns are atomic types for CSV export
combined_results_clean <- combined_results %>%
  mutate(across(everything(), ~ if (is.list(.)) sapply(., toString) else .))

# Function for plotting top terms
plot_gprofiler_results <- function(data, title, color) {
  ggplot(data, aes(x = -log10(p.adjust), y = reorder(term_name, -log10(p.adjust)))) +
    geom_bar(stat = "identity", fill = color) +
    labs(
      x = "-log10(Adjusted p-value)",
      y = title,
      title = paste("Top 20", title, "GO Terms")
    ) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black"),
      panel.border = element_rect(colour = "black", fill = NA, size = 0.3)
    )
}

# Check if there are enrichment terms to plot
if (nrow(combined_results) == 1 && combined_results$term_name == "No enriched terms") {
  message("No enriched GO terms found for the input gene set.")
} else {
  # Plot the top 20 terms for each category
  plot_BP <- plot_gprofiler_results(top_BP, "Biological Process", "#2E86C1")
  plot_MF <- plot_gprofiler_results(top_MF, "Molecular Function", "#28B463")
  plot_CC <- plot_gprofiler_results(top_CC, "Cellular Component", "#D35400")

  # Combine the plots using patchwork
  combined_plot <- plot_BP / plot_MF / plot_CC

  # Display the combined plot
  combined_plot
}

Version Author Date
fc2db42 sayanpaul01 2025-02-24

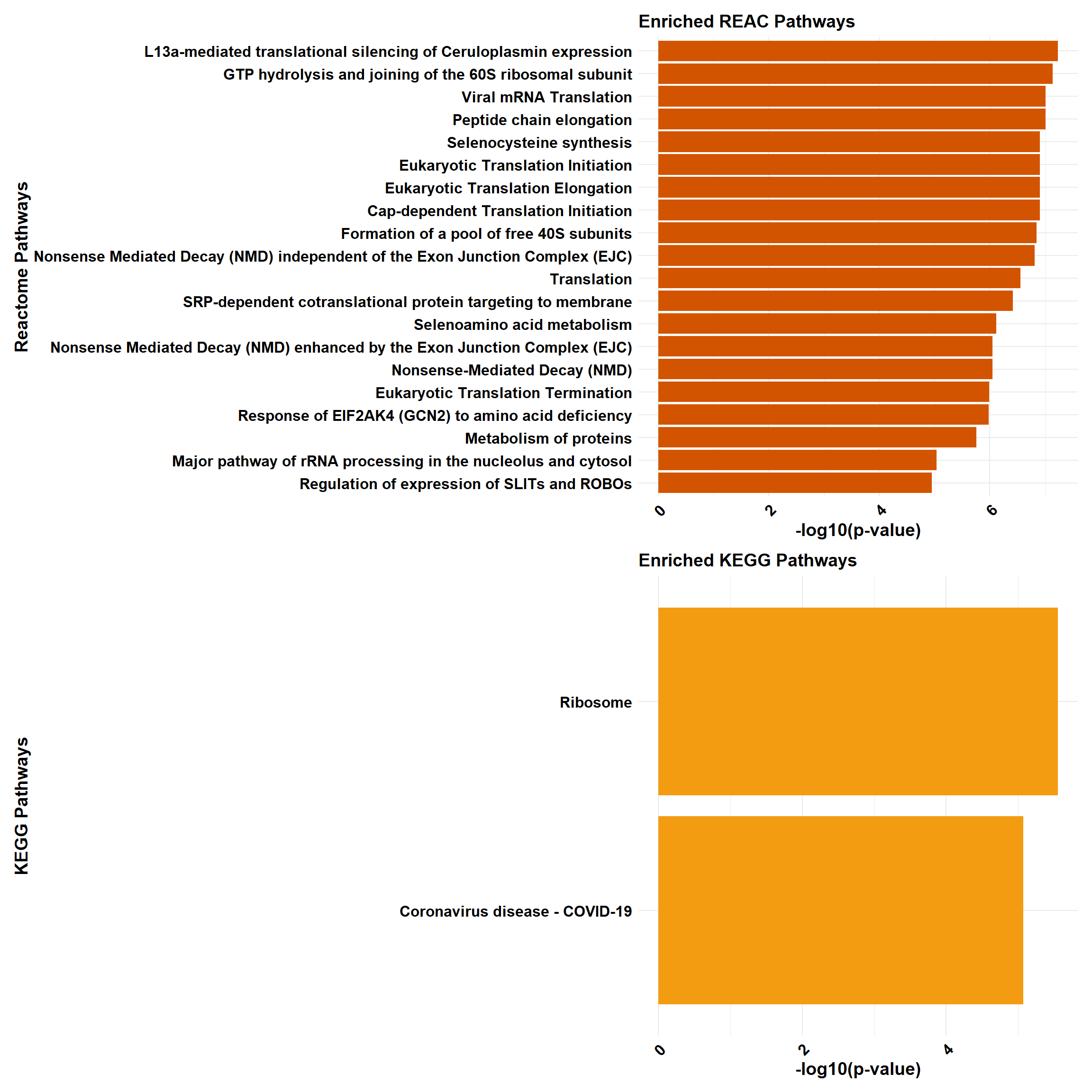

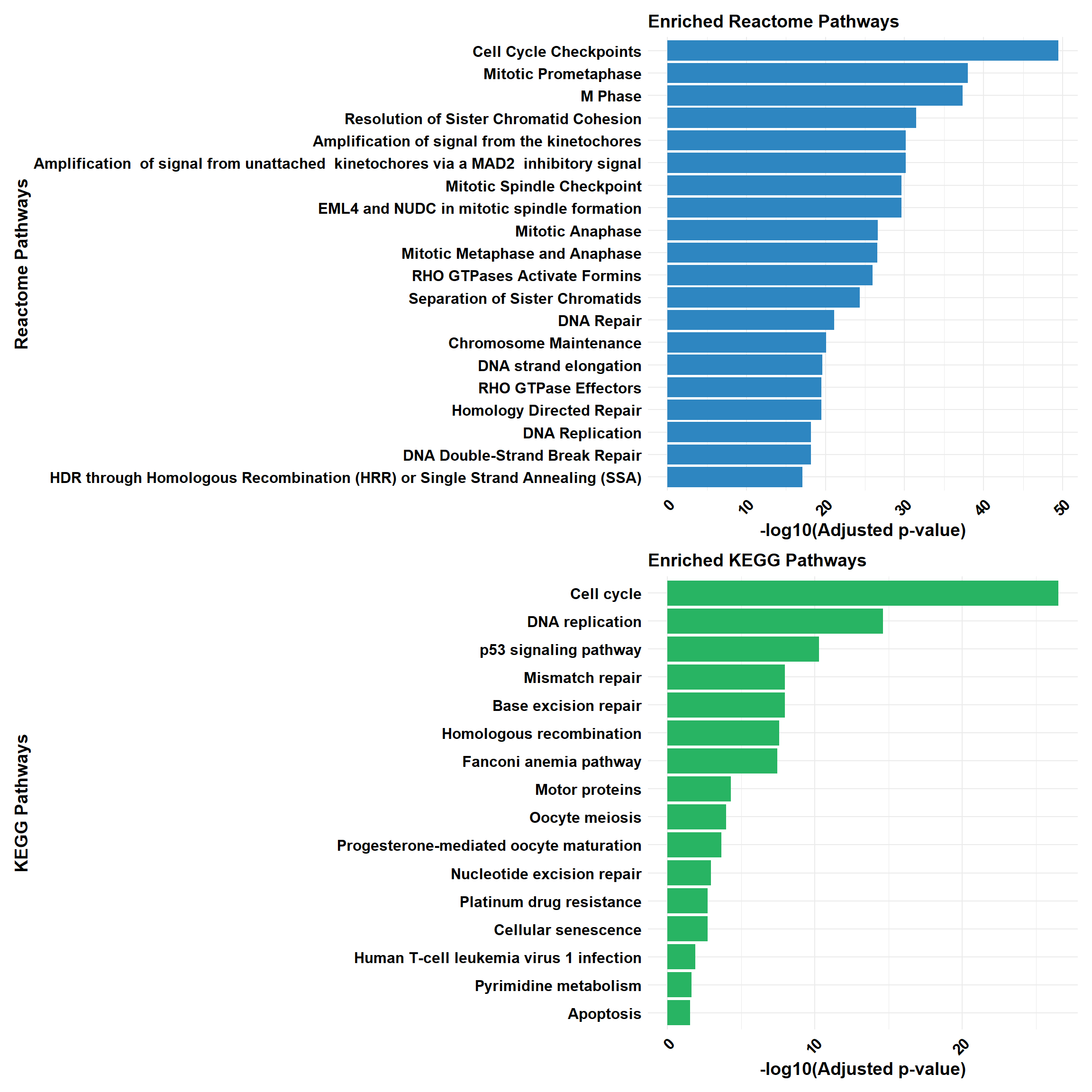

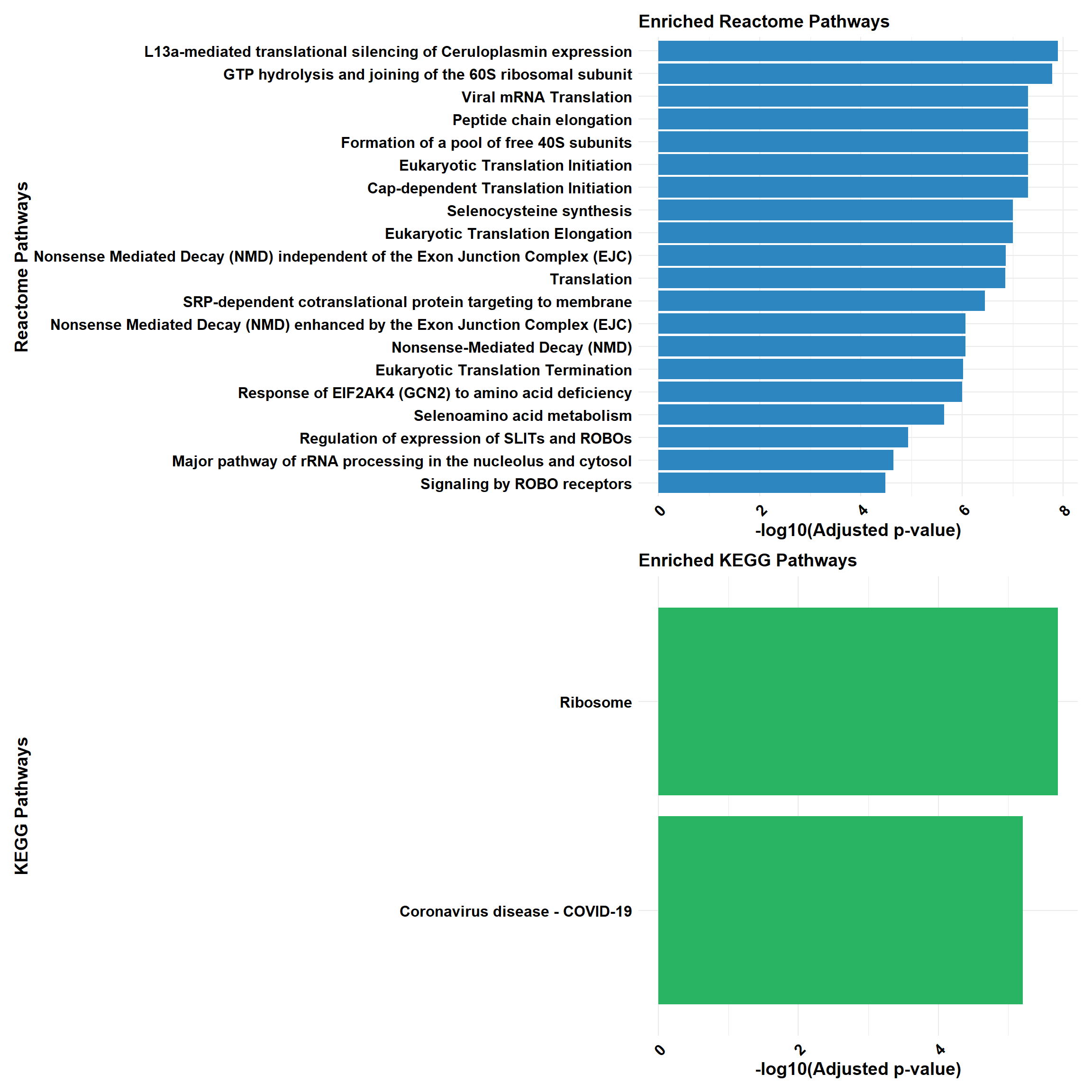

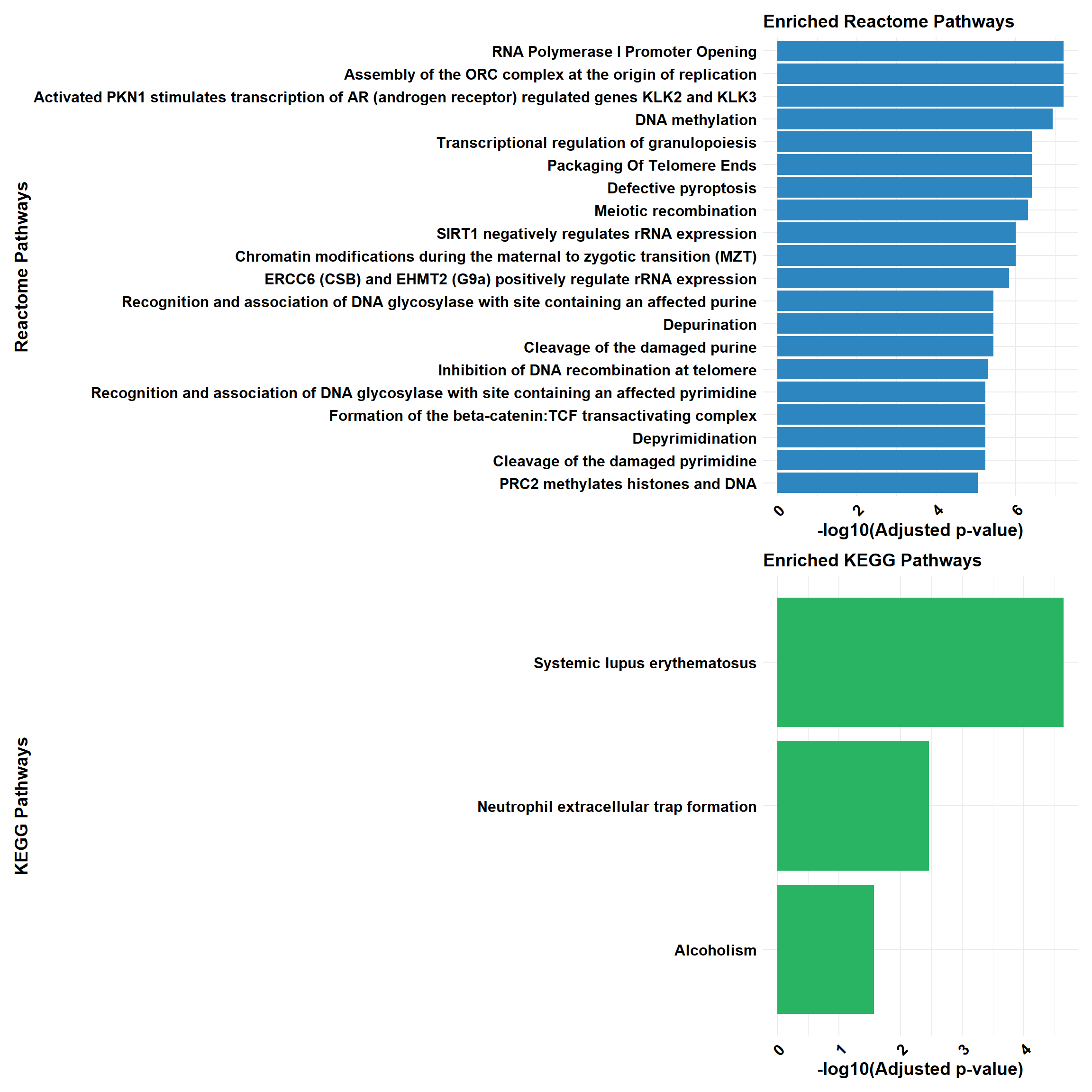

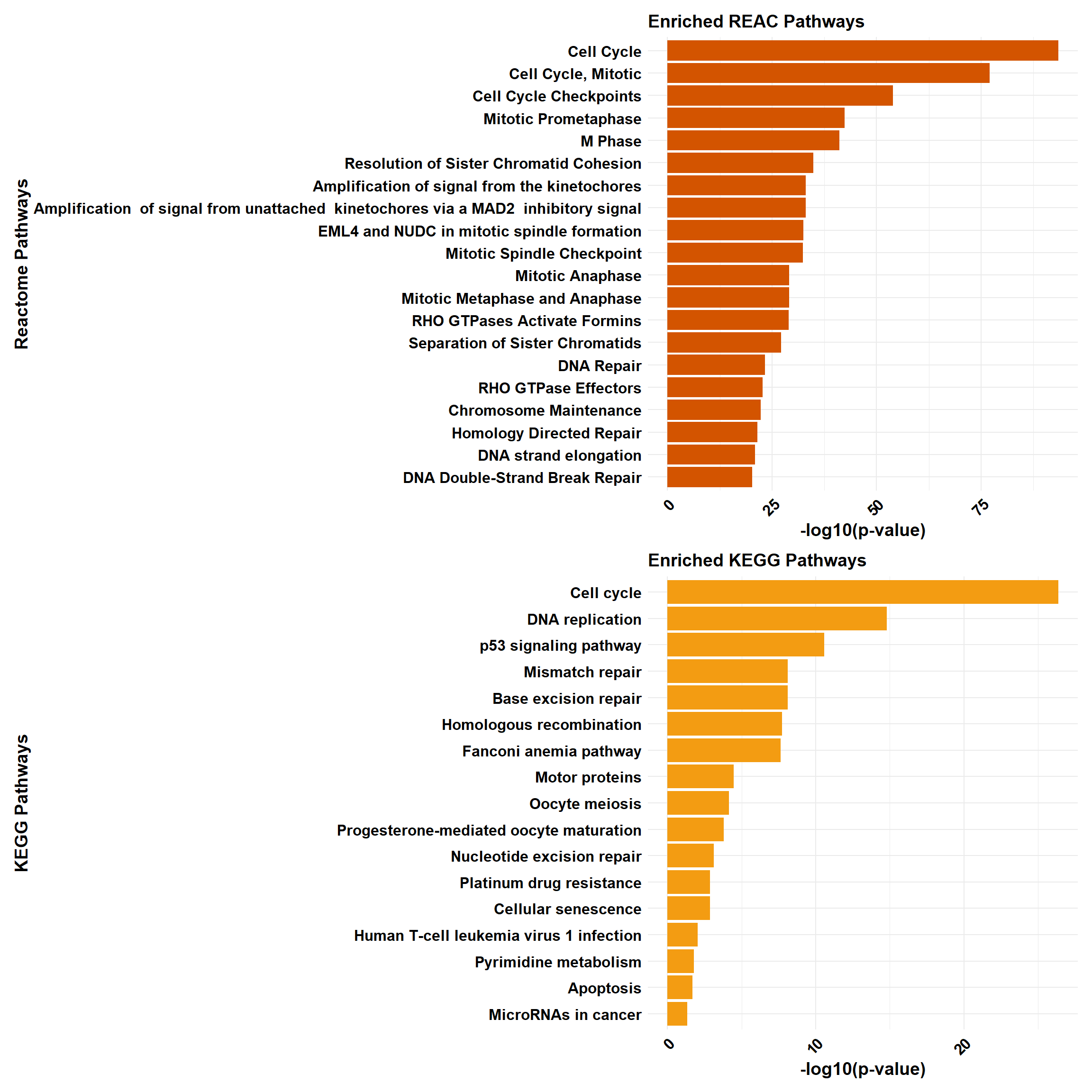

📌 Non response Pathway Enrichment

# Load required libraries
library(clusterProfiler)
library(org.Hs.eg.db) # Required for enrichPathway
library(gprofiler2)
library(ggplot2)
library(dplyr)
library(patchwork)
library(ReactomePA)
Warning: package 'ReactomePA' was built under R version 4.3.1
# Function for ClusterProfiler Reactome & KEGG Analysis
process_clusterProfiler <- function(gene_set, background, category, color, y_title) {
  # Perform enrichment based on the selected category
  if (category == "Reactome") {
    enrichment <- enrichPathway(
      gene = gene_set,
      organism = "human",
      pvalueCutoff = 0.05,
      pAdjustMethod = "BH",
      universe = background
    )
  } else if (category == "KEGG") {
    enrichment <- enrichKEGG(
      gene = gene_set,
      organism = "hsa",
      pvalueCutoff = 0.05,
      pAdjustMethod = "BH",
      universe = background
    )
  }

  # Check if enrichment results exist
  if (is.null(enrichment) || nrow(as.data.frame(enrichment)) == 0) {
    message(paste("No significant enrichment found for", category, "in ClusterProfiler"))
    return(NULL)
  }

  # Convert results to tibble and process top 20 terms
  enrichment_tibble <- as_tibble(as.data.frame(enrichment)) %>%
    mutate(Category = category,
           neglog = -log10(p.adjust)) %>%  # Compute -log10(p.adjust)
    arrange(desc(neglog)) %>%
    slice_head(n = min(20, nrow(.)))  # Ensure safe slicing

  # Generate plot
  plot <- ggplot(enrichment_tibble, aes(x = neglog, y = reorder(Description, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log10(Adjusted p-value)",
         y = y_title,
         title = paste("Enriched", category, "Pathways")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black")
    )

  return(plot)
}

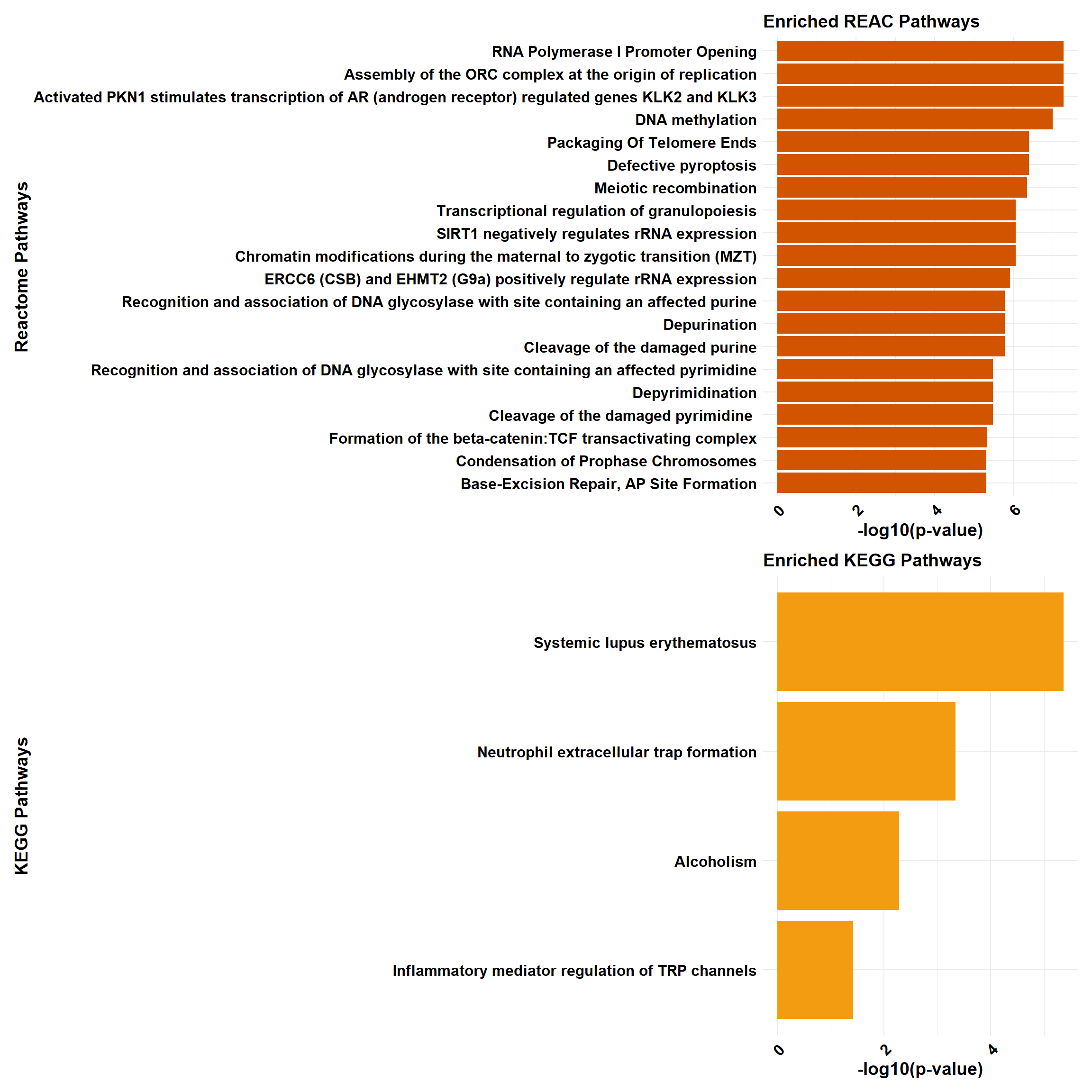

# Function for gProfiler Reactome & KEGG Analysis
process_gprofiler <- function(gene_set, background, category, color, y_title) {
  # Perform enrichment using gprofiler2
  enrichment <- gost(
    query = gene_set,
    organism = "hsapiens",
    user_threshold = 0.05,
    correction_method = "fdr",
    domain_scope = "custom",
    custom_bg = background,
    sources = category # Either "REAC" or "KEGG"
  )

  # Check if enrichment results exist
  if (is.null(enrichment$result) || nrow(enrichment$result) == 0) {
    message(paste("No significant enrichment found for", category, "in gProfiler"))
    return(NULL)
  }

  # Convert results to tibble and process top 20 terms
  enrichment_tibble <- enrichment$result %>%
    as_tibble() %>%
    mutate(Category = category,
           neglog = -log10(p_value)) %>%  # Compute -log10(p-value)
    arrange(desc(neglog)) %>%
    slice_head(n = min(20, nrow(.)))  # Ensure safe slicing

  # Generate plot
  plot <- ggplot(enrichment_tibble, aes(x = neglog, y = reorder(term_name, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log10(p-value)",
         y = y_title,
         title = paste("Enriched", category, "Pathways")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black")
    )

  return(plot)
}

# Perform analysis for Reactome and KEGG using ClusterProfiler
cluster_reactome <- process_clusterProfiler(
  gene_set = prob_all_1,
  background = background,
  category = "Reactome",
  color = "#2E86C1",
  y_title = "Reactome Pathways"
)

cluster_kegg <- process_clusterProfiler(
  gene_set = prob_all_1,
  background = background,
  category = "KEGG",
  color = "#28B463",
  y_title = "KEGG Pathways"
)

# Combine Reactome and KEGG for ClusterProfiler
if (!is.null(cluster_reactome) && !is.null(cluster_kegg)) {
  cluster_combined <- cluster_reactome / cluster_kegg
} else if (!is.null(cluster_reactome)) {
  cluster_combined <- cluster_reactome
} else if (!is.null(cluster_kegg)) {
  cluster_combined <- cluster_kegg
} else {
  cluster_combined <- NULL
}

# Perform analysis for Reactome and KEGG using GProfiler
gprofiler_reactome <- process_gprofiler(
  gene_set = prob_all_1,
  background = background,
  category = "REAC",  # Corrected category for Reactome in gProfiler
  color = "#D35400",
  y_title = "Reactome Pathways"
)

gprofiler_kegg <- process_gprofiler(
  gene_set = prob_all_1,
  background = background,
  category = "KEGG",
  color = "#F39C12",
  y_title = "KEGG Pathways"
)

# Combine Reactome and KEGG for GProfiler
if (!is.null(gprofiler_reactome) && !is.null(gprofiler_kegg)) {
  gprofiler_combined <- gprofiler_reactome / gprofiler_kegg
} else if (!is.null(gprofiler_reactome)) {
  gprofiler_combined <- gprofiler_reactome
} else if (!is.null(gprofiler_kegg)) {
  gprofiler_combined <- gprofiler_kegg
} else {
  gprofiler_combined <- NULL
}

# Display plots (if they are not NULL)
if (!is.null(cluster_combined)) print(cluster_combined)

Version Author Date
fc2db42 sayanpaul01 2025-02-24
if (!is.null(gprofiler_combined)) print(gprofiler_combined)

Version Author Date
fc2db42 sayanpaul01 2025-02-24

📌 CX_DOX shared late response

📌 CX_DOX shared late response GO Enrichment Clusterprofiler

# Perform GO enrichment analysis for BP, MF, and CC
go_enrichment_BP <- enrichGO(gene = prob_all_2,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "BP",
                             pvalueCutoff = 0.05)

go_enrichment_MF <- enrichGO(gene = prob_all_2,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "MF",
                             pvalueCutoff = 0.05)

go_enrichment_CC <- enrichGO(gene = prob_all_2,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "CC",
                             pvalueCutoff = 0.05)

# Convert each enrichment result to a tibble, add a category column, and select top 20 terms
process_enrichment_tibble <- function(enrichment, category) {
  if (is.null(enrichment) || nrow(as.data.frame(enrichment)) == 0) {
    return(tibble(Description = "No enriched terms", neglog = 0, Category = category))
  } else {
    enrichment %>%
      as_tibble() %>%
      mutate(Category = category,
             neglog = -log(p.adjust)) %>% # Add -log(p.adjust) column
      arrange(desc(neglog)) %>%          # Sort by -log(p.adjust)
      slice(1:20)                        # Select top 20 terms
  }
}

BP_Tibble <- process_enrichment_tibble(go_enrichment_BP, "Biological Process")
MF_Tibble <- process_enrichment_tibble(go_enrichment_MF, "Molecular Function")
CC_Tibble <- process_enrichment_tibble(go_enrichment_CC, "Cellular Component")

# Combine all tibbles
combined_GO_Tibble <- bind_rows(BP_Tibble, MF_Tibble, CC_Tibble)
# Function to generate enrichment plots
process_enrichment_plot <- function(tibble, title, color) {
  ggplot(data = tibble, aes(x = neglog, y = reorder(Description, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log(p-adjust)",
         y = title,
         title = paste("Top 20", title, "GO Terms")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black"),
      panel.border = element_rect(colour = "black", fill = NA, size = 0.3)
    ) +
    xlim(c(0, max(tibble$neglog) + 1))
}

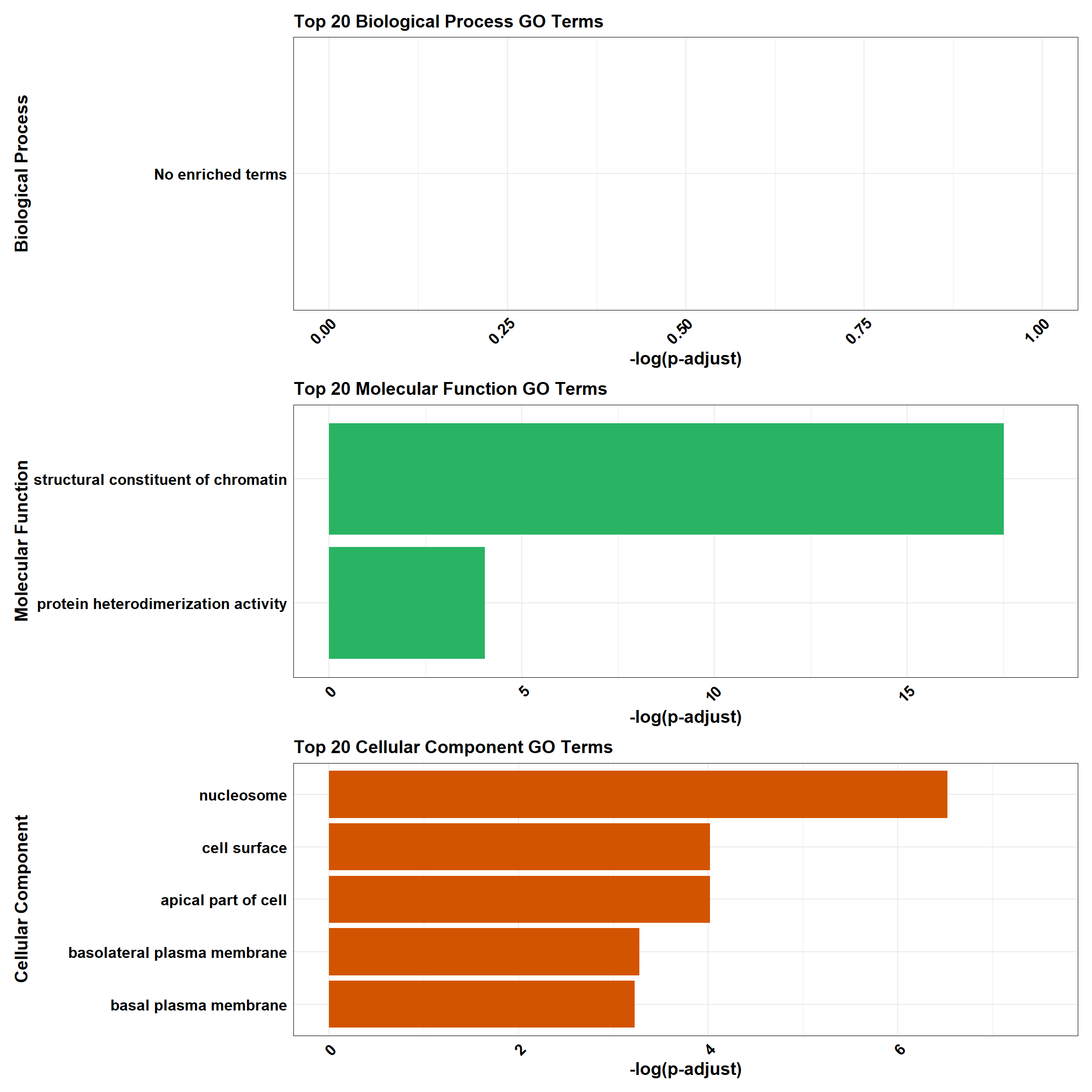

# Generate separate plots
plot_BP <- process_enrichment_plot(BP_Tibble, "Biological Process", "#2E86C1")
plot_MF <- process_enrichment_plot(MF_Tibble, "Molecular Function", "#28B463")
plot_CC <- process_enrichment_plot(CC_Tibble, "Cellular Component", "#D35400")

# Combine the plots using patchwork
combined_plot <- plot_BP / plot_MF / plot_CC

# Display the combined plot
combined_plot

📌 CX_DOX shared late response GO Enrichment g:Profiler

# Load the gprofiler2 package
library(gprofiler2)
library(ggplot2)
library(dplyr)
library(patchwork)

# Perform GO enrichment analysis with gprofiler2
gost_results <- gost(
  query = prob_all_2,           # List of input genes (prob_all_2)
  organism = "hsapiens",   # Human organism
  user_threshold = 0.05,   # Adjusted p-value cutoff
  correction_method = "fdr", # Multiple testing correction
  domain_scope = "custom", # Use custom background
  custom_bg = background,    # Background set of genes
  sources = c("GO:BP", "GO:MF", "GO:CC") # Analyze GO categories
)

# Check if enrichment results exist
if (is.null(gost_results$result) || nrow(gost_results$result) == 0) {
  # If no enriched terms, create a placeholder dataframe
  combined_results <- tibble(
    term_name = "No enriched terms",
    p.adjust = NA,
    source = "N/A",
    Category = "N/A"
  )
} else {
  # Convert results to a data frame
  gost_results_df <- gost_results$result

  # Add a column for adjusted p-value
  gost_results_df <- gost_results_df %>%
    rename(p.adjust = p_value)

  # Separate results for BP, MF, and CC
  BP_results <- gost_results_df %>%
    filter(source == "GO:BP") %>%
    mutate(Category = "Biological Process")

  MF_results <- gost_results_df %>%
    filter(source == "GO:MF") %>%
    mutate(Category = "Molecular Function")

  CC_results <- gost_results_df %>%
    filter(source == "GO:CC") %>%
    mutate(Category = "Cellular Component")

  # Select the top 20 terms by adjusted p-value for each category
  top_BP <- BP_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  top_MF <- MF_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  top_CC <- CC_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  # Combine all categories
  combined_results <- bind_rows(top_BP, top_MF, top_CC)
}

# Ensure all columns are atomic types for CSV export
combined_results_clean <- combined_results %>%
  mutate(across(everything(), ~ if (is.list(.)) sapply(., toString) else .))

# Function for plotting top terms
plot_gprofiler_results <- function(data, title, color) {
  ggplot(data, aes(x = -log10(p.adjust), y = reorder(term_name, -log10(p.adjust)))) +
    geom_bar(stat = "identity", fill = color) +
    labs(
      x = "-log10(Adjusted p-value)",
      y = title,
      title = paste("Top 20", title, "GO Terms")
    ) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black"),
      panel.border = element_rect(colour = "black", fill = NA, size = 0.3)
    )
}

# Check if there are enrichment terms to plot
if (nrow(combined_results) == 1 && combined_results$term_name == "No enriched terms") {
  message("No enriched GO terms found for the input gene set.")
} else {
  # Plot the top 20 terms for each category
  plot_BP <- plot_gprofiler_results(top_BP, "Biological Process", "#2E86C1")
  plot_MF <- plot_gprofiler_results(top_MF, "Molecular Function", "#28B463")
  plot_CC <- plot_gprofiler_results(top_CC, "Cellular Component", "#D35400")

  # Combine the plots using patchwork
  combined_plot <- plot_BP / plot_MF / plot_CC

  # Display the combined plot
  combined_plot
}

📌 CX_DOX shared late response Pathway Enrichment

# Load required libraries
library(clusterProfiler)
library(org.Hs.eg.db) # Required for enrichPathway
library(gprofiler2)
library(ggplot2)
library(dplyr)
library(patchwork)
library(ReactomePA)

# Function for ClusterProfiler Reactome & KEGG Analysis
process_clusterProfiler <- function(gene_set, background, category, color, y_title) {
  # Perform enrichment based on the selected category
  if (category == "Reactome") {
    enrichment <- enrichPathway(
      gene = gene_set,
      organism = "human",
      pvalueCutoff = 0.05,
      pAdjustMethod = "BH",
      universe = background
    )
  } else if (category == "KEGG") {
    enrichment <- enrichKEGG(
      gene = gene_set,
      organism = "hsa",
      pvalueCutoff = 0.05,
      pAdjustMethod = "BH",
      universe = background
    )
  }

  # Check if enrichment results exist
  if (is.null(enrichment) || nrow(as.data.frame(enrichment)) == 0) {
    message(paste("No significant enrichment found for", category, "in ClusterProfiler"))
    return(NULL)
  }

  # Convert results to tibble and process top 20 terms
  enrichment_tibble <- as_tibble(as.data.frame(enrichment)) %>%
    mutate(Category = category,
           neglog = -log10(p.adjust)) %>%  # Compute -log10(p.adjust)
    arrange(desc(neglog)) %>%
    slice_head(n = min(20, nrow(.)))  # Ensure safe slicing

  # Generate plot
  plot <- ggplot(enrichment_tibble, aes(x = neglog, y = reorder(Description, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log10(Adjusted p-value)",
         y = y_title,
         title = paste("Enriched", category, "Pathways")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black")
    )

  return(plot)
}

# Function for gProfiler Reactome & KEGG Analysis
process_gprofiler <- function(gene_set, background, category, color, y_title) {
  # Perform enrichment using gprofiler2
  enrichment <- gost(
    query = gene_set,
    organism = "hsapiens",
    user_threshold = 0.05,
    correction_method = "fdr",
    domain_scope = "custom",
    custom_bg = background,
    sources = category # Either "REAC" or "KEGG"
  )

  # Check if enrichment results exist
  if (is.null(enrichment$result) || nrow(enrichment$result) == 0) {
    message(paste("No significant enrichment found for", category, "in gProfiler"))
    return(NULL)
  }

  # Convert results to tibble and process top 20 terms
  enrichment_tibble <- enrichment$result %>%
    as_tibble() %>%
    mutate(Category = category,
           neglog = -log10(p_value)) %>%  # Compute -log10(p-value)
    arrange(desc(neglog)) %>%
    slice_head(n = min(20, nrow(.)))  # Ensure safe slicing

  # Generate plot
  plot <- ggplot(enrichment_tibble, aes(x = neglog, y = reorder(term_name, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log10(p-value)",
         y = y_title,
         title = paste("Enriched", category, "Pathways")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black")
    )

  return(plot)
}

# Perform analysis for Reactome and KEGG using ClusterProfiler
cluster_reactome <- process_clusterProfiler(
  gene_set = prob_all_2,
  background = background,
  category = "Reactome",
  color = "#2E86C1",
  y_title = "Reactome Pathways"
)

cluster_kegg <- process_clusterProfiler(
  gene_set = prob_all_2,
  background = background,
  category = "KEGG",
  color = "#28B463",
  y_title = "KEGG Pathways"
)

# Combine Reactome and KEGG for ClusterProfiler
if (!is.null(cluster_reactome) && !is.null(cluster_kegg)) {
  cluster_combined <- cluster_reactome / cluster_kegg
} else if (!is.null(cluster_reactome)) {
  cluster_combined <- cluster_reactome
} else if (!is.null(cluster_kegg)) {
  cluster_combined <- cluster_kegg
} else {
  cluster_combined <- NULL
}

# Perform analysis for Reactome and KEGG using GProfiler
gprofiler_reactome <- process_gprofiler(
  gene_set = prob_all_2,
  background = background,
  category = "REAC",  # Corrected category for Reactome in gProfiler
  color = "#D35400",
  y_title = "Reactome Pathways"
)

gprofiler_kegg <- process_gprofiler(
  gene_set = prob_all_2,
  background = background,
  category = "KEGG",
  color = "#F39C12",
  y_title = "KEGG Pathways"
)

# Combine Reactome and KEGG for GProfiler
if (!is.null(gprofiler_reactome) && !is.null(gprofiler_kegg)) {
  gprofiler_combined <- gprofiler_reactome / gprofiler_kegg
} else if (!is.null(gprofiler_reactome)) {
  gprofiler_combined <- gprofiler_reactome
} else if (!is.null(gprofiler_kegg)) {
  gprofiler_combined <- gprofiler_kegg
} else {
  gprofiler_combined <- NULL
}

# Display plots (if they are not NULL)
if (!is.null(cluster_combined)) print(cluster_combined)

if (!is.null(gprofiler_combined)) print(gprofiler_combined)

📌 DOX-specific response

📌 DOX-specific response GO Enrichment Clusterprofiler

# Perform GO enrichment analysis for BP, MF, and CC
go_enrichment_BP <- enrichGO(gene = prob_all_3,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "BP",
                             pvalueCutoff = 0.05)

go_enrichment_MF <- enrichGO(gene = prob_all_3,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "MF",
                             pvalueCutoff = 0.05)

go_enrichment_CC <- enrichGO(gene = prob_all_3,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "CC",
                             pvalueCutoff = 0.05)

# Convert each enrichment result to a tibble, add a category column, and select top 20 terms
process_enrichment_tibble <- function(enrichment, category) {
  if (is.null(enrichment) || nrow(as.data.frame(enrichment)) == 0) {
    return(tibble(Description = "No enriched terms", neglog = 0, Category = category))
  } else {
    enrichment %>%
      as_tibble() %>%
      mutate(Category = category,
             neglog = -log(p.adjust)) %>% # Add -log(p.adjust) column
      arrange(desc(neglog)) %>%          # Sort by -log(p.adjust)
      slice(1:20)                        # Select top 20 terms
  }
}

BP_Tibble <- process_enrichment_tibble(go_enrichment_BP, "Biological Process")
MF_Tibble <- process_enrichment_tibble(go_enrichment_MF, "Molecular Function")
CC_Tibble <- process_enrichment_tibble(go_enrichment_CC, "Cellular Component")

# Combine all tibbles
combined_GO_Tibble <- bind_rows(BP_Tibble, MF_Tibble, CC_Tibble)
# Function to generate enrichment plots
process_enrichment_plot <- function(tibble, title, color) {
  ggplot(data = tibble, aes(x = neglog, y = reorder(Description, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log(p-adjust)",
         y = title,
         title = paste("Top 20", title, "GO Terms")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black"),
      panel.border = element_rect(colour = "black", fill = NA, size = 0.3)
    ) +
    xlim(c(0, max(tibble$neglog) + 1))
}

# Generate separate plots
plot_BP <- process_enrichment_plot(BP_Tibble, "Biological Process", "#2E86C1")
plot_MF <- process_enrichment_plot(MF_Tibble, "Molecular Function", "#28B463")
plot_CC <- process_enrichment_plot(CC_Tibble, "Cellular Component", "#D35400")

# Combine the plots using patchwork
combined_plot <- plot_BP / plot_MF / plot_CC

# Display the combined plot
combined_plot

📌 DOX-specific response GO Enrichment g:Profiler

# Load the gprofiler2 package
library(gprofiler2)
library(ggplot2)
library(dplyr)
library(patchwork)

# Perform GO enrichment analysis with gprofiler2
gost_results <- gost(
  query = prob_all_3,           # List of input genes (prob_all_3)
  organism = "hsapiens",   # Human organism
  user_threshold = 0.05,   # Adjusted p-value cutoff
  correction_method = "fdr", # Multiple testing correction
  domain_scope = "custom", # Use custom background
  custom_bg = background,    # Background set of genes
  sources = c("GO:BP", "GO:MF", "GO:CC") # Analyze GO categories
)

# Check if enrichment results exist
if (is.null(gost_results$result) || nrow(gost_results$result) == 0) {
  # If no enriched terms, create a placeholder dataframe
  combined_results <- tibble(
    term_name = "No enriched terms",
    p.adjust = NA,
    source = "N/A",
    Category = "N/A"
  )
} else {
  # Convert results to a data frame
  gost_results_df <- gost_results$result

  # Add a column for adjusted p-value
  gost_results_df <- gost_results_df %>%
    rename(p.adjust = p_value)

  # Separate results for BP, MF, and CC
  BP_results <- gost_results_df %>%
    filter(source == "GO:BP") %>%
    mutate(Category = "Biological Process")

  MF_results <- gost_results_df %>%
    filter(source == "GO:MF") %>%
    mutate(Category = "Molecular Function")

  CC_results <- gost_results_df %>%
    filter(source == "GO:CC") %>%
    mutate(Category = "Cellular Component")

  # Select the top 20 terms by adjusted p-value for each category
  top_BP <- BP_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  top_MF <- MF_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  top_CC <- CC_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  # Combine all categories
  combined_results <- bind_rows(top_BP, top_MF, top_CC)
}

# Ensure all columns are atomic types for CSV export
combined_results_clean <- combined_results %>%
  mutate(across(everything(), ~ if (is.list(.)) sapply(., toString) else .))

# Function for plotting top terms
plot_gprofiler_results <- function(data, title, color) {
  ggplot(data, aes(x = -log10(p.adjust), y = reorder(term_name, -log10(p.adjust)))) +
    geom_bar(stat = "identity", fill = color) +
    labs(
      x = "-log10(Adjusted p-value)",
      y = title,
      title = paste("Top 20", title, "GO Terms")
    ) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black"),
      panel.border = element_rect(colour = "black", fill = NA, size = 0.3)
    )
}

# Check if there are enrichment terms to plot
if (nrow(combined_results) == 1 && combined_results$term_name == "No enriched terms") {
  message("No enriched GO terms found for the input gene set.")
} else {
  # Plot the top 20 terms for each category
  plot_BP <- plot_gprofiler_results(top_BP, "Biological Process", "#2E86C1")
  plot_MF <- plot_gprofiler_results(top_MF, "Molecular Function", "#28B463")
  plot_CC <- plot_gprofiler_results(top_CC, "Cellular Component", "#D35400")

  # Combine the plots using patchwork
  combined_plot <- plot_BP / plot_MF / plot_CC

  # Display the combined plot
  combined_plot
}

📌 DOX-specific response Pathway Enrichment

# Load required libraries
library(clusterProfiler)
library(org.Hs.eg.db) # Required for enrichPathway
library(gprofiler2)
library(ggplot2)
library(dplyr)
library(patchwork)
library(ReactomePA)

# Function for ClusterProfiler Reactome & KEGG Analysis
process_clusterProfiler <- function(gene_set, background, category, color, y_title) {
  # Perform enrichment based on the selected category
  if (category == "Reactome") {
    enrichment <- enrichPathway(
      gene = gene_set,
      organism = "human",
      pvalueCutoff = 0.05,
      pAdjustMethod = "BH",
      universe = background
    )
  } else if (category == "KEGG") {
    enrichment <- enrichKEGG(
      gene = gene_set,
      organism = "hsa",
      pvalueCutoff = 0.05,
      pAdjustMethod = "BH",
      universe = background
    )
  }

  # Check if enrichment results exist
  if (is.null(enrichment) || nrow(as.data.frame(enrichment)) == 0) {
    message(paste("No significant enrichment found for", category, "in ClusterProfiler"))
    return(NULL)
  }

  # Convert results to tibble and process top 20 terms
  enrichment_tibble <- as_tibble(as.data.frame(enrichment)) %>%
    mutate(Category = category,
           neglog = -log10(p.adjust)) %>%  # Compute -log10(p.adjust)
    arrange(desc(neglog)) %>%
    slice_head(n = min(20, nrow(.)))  # Ensure safe slicing

  # Generate plot
  plot <- ggplot(enrichment_tibble, aes(x = neglog, y = reorder(Description, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log10(Adjusted p-value)",
         y = y_title,
         title = paste("Enriched", category, "Pathways")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black")
    )

  return(plot)
}

# Function for gProfiler Reactome & KEGG Analysis
process_gprofiler <- function(gene_set, background, category, color, y_title) {
  # Perform enrichment using gprofiler2
  enrichment <- gost(
    query = gene_set,
    organism = "hsapiens",
    user_threshold = 0.05,
    correction_method = "fdr",
    domain_scope = "custom",
    custom_bg = background,
    sources = category # Either "REAC" or "KEGG"
  )

  # Check if enrichment results exist
  if (is.null(enrichment$result) || nrow(enrichment$result) == 0) {
    message(paste("No significant enrichment found for", category, "in gProfiler"))
    return(NULL)
  }

  # Convert results to tibble and process top 20 terms
  enrichment_tibble <- enrichment$result %>%
    as_tibble() %>%
    mutate(Category = category,
           neglog = -log10(p_value)) %>%  # Compute -log10(p-value)
    arrange(desc(neglog)) %>%
    slice_head(n = min(20, nrow(.)))  # Ensure safe slicing

  # Generate plot
  plot <- ggplot(enrichment_tibble, aes(x = neglog, y = reorder(term_name, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log10(p-value)",
         y = y_title,
         title = paste("Enriched", category, "Pathways")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black")
    )

  return(plot)
}

# Perform analysis for Reactome and KEGG using ClusterProfiler
cluster_reactome <- process_clusterProfiler(
  gene_set = prob_all_3,
  background = background,
  category = "Reactome",
  color = "#2E86C1",
  y_title = "Reactome Pathways"
)

cluster_kegg <- process_clusterProfiler(
  gene_set = prob_all_3,
  background = background,
  category = "KEGG",
  color = "#28B463",
  y_title = "KEGG Pathways"
)

# Combine Reactome and KEGG for ClusterProfiler
if (!is.null(cluster_reactome) && !is.null(cluster_kegg)) {
  cluster_combined <- cluster_reactome / cluster_kegg
} else if (!is.null(cluster_reactome)) {
  cluster_combined <- cluster_reactome
} else if (!is.null(cluster_kegg)) {
  cluster_combined <- cluster_kegg
} else {
  cluster_combined <- NULL
}

# Perform analysis for Reactome and KEGG using GProfiler
gprofiler_reactome <- process_gprofiler(
  gene_set = prob_all_3,
  background = background,
  category = "REAC",  # Corrected category for Reactome in gProfiler
  color = "#D35400",
  y_title = "Reactome Pathways"
)

gprofiler_kegg <- process_gprofiler(
  gene_set = prob_all_3,
  background = background,
  category = "KEGG",
  color = "#F39C12",
  y_title = "KEGG Pathways"
)

# Combine Reactome and KEGG for GProfiler
if (!is.null(gprofiler_reactome) && !is.null(gprofiler_kegg)) {
  gprofiler_combined <- gprofiler_reactome / gprofiler_kegg
} else if (!is.null(gprofiler_reactome)) {
  gprofiler_combined <- gprofiler_reactome
} else if (!is.null(gprofiler_kegg)) {
  gprofiler_combined <- gprofiler_kegg
} else {
  gprofiler_combined <- NULL
}

# Display plots (if they are not NULL)
if (!is.null(cluster_combined)) print(cluster_combined)

if (!is.null(gprofiler_combined)) print(gprofiler_combined)

📌 Late high dose DOX-specific response

📌 Late high dose DOX-specific response GO Enrichment Clusterprofiler

# Perform GO enrichment analysis for BP, MF, and CC
go_enrichment_BP <- enrichGO(gene = prob_all_4,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "BP",
                             pvalueCutoff = 0.05)

go_enrichment_MF <- enrichGO(gene = prob_all_4,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "MF",
                             pvalueCutoff = 0.05)

go_enrichment_CC <- enrichGO(gene = prob_all_4,
                             OrgDb = org.Hs.eg.db,
                             keyType = "ENTREZID",
                             universe = background,
                             ont = "CC",
                             pvalueCutoff = 0.05)

# Convert each enrichment result to a tibble, add a category column, and select top 20 terms
process_enrichment_tibble <- function(enrichment, category) {
  if (is.null(enrichment) || nrow(as.data.frame(enrichment)) == 0) {
    return(tibble(Description = "No enriched terms", neglog = 0, Category = category))
  } else {
    enrichment %>%
      as_tibble() %>%
      mutate(Category = category,
             neglog = -log(p.adjust)) %>% # Add -log(p.adjust) column
      arrange(desc(neglog)) %>%          # Sort by -log(p.adjust)
      slice(1:20)                        # Select top 20 terms
  }
}

BP_Tibble <- process_enrichment_tibble(go_enrichment_BP, "Biological Process")
MF_Tibble <- process_enrichment_tibble(go_enrichment_MF, "Molecular Function")
CC_Tibble <- process_enrichment_tibble(go_enrichment_CC, "Cellular Component")

# Combine all tibbles
combined_GO_Tibble <- bind_rows(BP_Tibble, MF_Tibble, CC_Tibble)
# Function to generate enrichment plots
process_enrichment_plot <- function(tibble, title, color) {
  ggplot(data = tibble, aes(x = neglog, y = reorder(Description, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log(p-adjust)",
         y = title,
         title = paste("Top 20", title, "GO Terms")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black"),
      panel.border = element_rect(colour = "black", fill = NA, size = 0.3)
    ) +
    xlim(c(0, max(tibble$neglog) + 1))
}

# Generate separate plots
plot_BP <- process_enrichment_plot(BP_Tibble, "Biological Process", "#2E86C1")
plot_MF <- process_enrichment_plot(MF_Tibble, "Molecular Function", "#28B463")
plot_CC <- process_enrichment_plot(CC_Tibble, "Cellular Component", "#D35400")

# Combine the plots using patchwork
combined_plot <- plot_BP / plot_MF / plot_CC

# Display the combined plot
combined_plot

📌 Late high dose DOX-specific response GO Enrichment g:Profiler

# Load the gprofiler2 package
library(gprofiler2)
library(ggplot2)
library(dplyr)
library(patchwork)

# Perform GO enrichment analysis with gprofiler2
gost_results <- gost(
  query = prob_all_4,           # List of input genes (prob_all_4)
  organism = "hsapiens",   # Human organism
  user_threshold = 0.05,   # Adjusted p-value cutoff
  correction_method = "fdr", # Multiple testing correction
  domain_scope = "custom", # Use custom background
  custom_bg = background,    # Background set of genes
  sources = c("GO:BP", "GO:MF", "GO:CC") # Analyze GO categories
)

# Check if enrichment results exist
if (is.null(gost_results$result) || nrow(gost_results$result) == 0) {
  # If no enriched terms, create a placeholder dataframe
  combined_results <- tibble(
    term_name = "No enriched terms",
    p.adjust = NA,
    source = "N/A",
    Category = "N/A"
  )
} else {
  # Convert results to a data frame
  gost_results_df <- gost_results$result

  # Add a column for adjusted p-value
  gost_results_df <- gost_results_df %>%
    rename(p.adjust = p_value)

  # Separate results for BP, MF, and CC
  BP_results <- gost_results_df %>%
    filter(source == "GO:BP") %>%
    mutate(Category = "Biological Process")

  MF_results <- gost_results_df %>%
    filter(source == "GO:MF") %>%
    mutate(Category = "Molecular Function")

  CC_results <- gost_results_df %>%
    filter(source == "GO:CC") %>%
    mutate(Category = "Cellular Component")

  # Select the top 20 terms by adjusted p-value for each category
  top_BP <- BP_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  top_MF <- MF_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  top_CC <- CC_results %>%
    arrange(p.adjust) %>%
    slice_head(n = 20)

  # Combine all categories
  combined_results <- bind_rows(top_BP, top_MF, top_CC)
}

# Ensure all columns are atomic types for CSV export
combined_results_clean <- combined_results %>%
  mutate(across(everything(), ~ if (is.list(.)) sapply(., toString) else .))

# Function for plotting top terms
plot_gprofiler_results <- function(data, title, color) {
  ggplot(data, aes(x = -log10(p.adjust), y = reorder(term_name, -log10(p.adjust)))) +
    geom_bar(stat = "identity", fill = color) +
    labs(
      x = "-log10(Adjusted p-value)",
      y = title,
      title = paste("Top 20", title, "GO Terms")
    ) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black"),
      panel.border = element_rect(colour = "black", fill = NA, size = 0.3)
    )
}

# Check if there are enrichment terms to plot
if (nrow(combined_results) == 1 && combined_results$term_name == "No enriched terms") {
  message("No enriched GO terms found for the input gene set.")
} else {
  # Plot the top 20 terms for each category
  plot_BP <- plot_gprofiler_results(top_BP, "Biological Process", "#2E86C1")
  plot_MF <- plot_gprofiler_results(top_MF, "Molecular Function", "#28B463")
  plot_CC <- plot_gprofiler_results(top_CC, "Cellular Component", "#D35400")

  # Combine the plots using patchwork
  combined_plot <- plot_BP / plot_MF / plot_CC

  # Display the combined plot
  combined_plot
}

📌 Late high dose DOX-specific response Pathway Enrichment

# Load required libraries
library(clusterProfiler)
library(org.Hs.eg.db) # Required for enrichPathway
library(gprofiler2)
library(ggplot2)
library(dplyr)
library(patchwork)
library(ReactomePA)

# Function for ClusterProfiler Reactome & KEGG Analysis
process_clusterProfiler <- function(gene_set, background, category, color, y_title) {
  # Perform enrichment based on the selected category
  if (category == "Reactome") {
    enrichment <- enrichPathway(
      gene = gene_set,
      organism = "human",
      pvalueCutoff = 0.05,
      pAdjustMethod = "BH",
      universe = background
    )
  } else if (category == "KEGG") {
    enrichment <- enrichKEGG(
      gene = gene_set,
      organism = "hsa",
      pvalueCutoff = 0.05,
      pAdjustMethod = "BH",
      universe = background
    )
  }

  # Check if enrichment results exist
  if (is.null(enrichment) || nrow(as.data.frame(enrichment)) == 0) {
    message(paste("No significant enrichment found for", category, "in ClusterProfiler"))
    return(NULL)
  }

  # Convert results to tibble and process top 20 terms
  enrichment_tibble <- as_tibble(as.data.frame(enrichment)) %>%
    mutate(Category = category,
           neglog = -log10(p.adjust)) %>%  # Compute -log10(p.adjust)
    arrange(desc(neglog)) %>%
    slice_head(n = min(20, nrow(.)))  # Ensure safe slicing

  # Generate plot
  plot <- ggplot(enrichment_tibble, aes(x = neglog, y = reorder(Description, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log10(Adjusted p-value)",
         y = y_title,
         title = paste("Enriched", category, "Pathways")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black")
    )

  return(plot)
}

# Function for gProfiler Reactome & KEGG Analysis
process_gprofiler <- function(gene_set, background, category, color, y_title) {
  # Perform enrichment using gprofiler2
  enrichment <- gost(
    query = gene_set,
    organism = "hsapiens",
    user_threshold = 0.05,
    correction_method = "fdr",
    domain_scope = "custom",
    custom_bg = background,
    sources = category # Either "REAC" or "KEGG"
  )

  # Check if enrichment results exist
  if (is.null(enrichment$result) || nrow(enrichment$result) == 0) {
    message(paste("No significant enrichment found for", category, "in gProfiler"))
    return(NULL)
  }

  # Convert results to tibble and process top 20 terms
  enrichment_tibble <- enrichment$result %>%
    as_tibble() %>%
    mutate(Category = category,
           neglog = -log10(p_value)) %>%  # Compute -log10(p-value)
    arrange(desc(neglog)) %>%
    slice_head(n = min(20, nrow(.)))  # Ensure safe slicing

  # Generate plot
  plot <- ggplot(enrichment_tibble, aes(x = neglog, y = reorder(term_name, neglog))) +
    geom_bar(stat = "identity", fill = color) +
    labs(x = "-log10(p-value)",
         y = y_title,
         title = paste("Enriched", category, "Pathways")) +
    theme_minimal() +
    theme(
      axis.text.x = element_text(size = 12, face = "bold", colour = "black", angle = 45, hjust = 1),
      axis.text.y = element_text(size = 12, face = "bold", colour = "black"),
      axis.title.x = element_text(size = 14, face = "bold", colour = "black"),
      axis.title.y = element_text(size = 14, face = "bold", colour = "black"),
      plot.title = element_text(size = 14, face = "bold", colour = "black")
    )

  return(plot)
}

# Perform analysis for Reactome and KEGG using ClusterProfiler
cluster_reactome <- process_clusterProfiler(
  gene_set = prob_all_4,
  background = background,
  category = "Reactome",
  color = "#2E86C1",
  y_title = "Reactome Pathways"
)

cluster_kegg <- process_clusterProfiler(
  gene_set = prob_all_4,
  background = background,
  category = "KEGG",
  color = "#28B463",
  y_title = "KEGG Pathways"
)

# Combine Reactome and KEGG for ClusterProfiler
if (!is.null(cluster_reactome) && !is.null(cluster_kegg)) {
  cluster_combined <- cluster_reactome / cluster_kegg
} else if (!is.null(cluster_reactome)) {
  cluster_combined <- cluster_reactome
} else if (!is.null(cluster_kegg)) {
  cluster_combined <- cluster_kegg
} else {
  cluster_combined <- NULL
}

# Perform analysis for Reactome and KEGG using GProfiler
gprofiler_reactome <- process_gprofiler(
  gene_set = prob_all_4,
  background = background,
  category = "REAC",  # Corrected category for Reactome in gProfiler
  color = "#D35400",
  y_title = "Reactome Pathways"
)

gprofiler_kegg <- process_gprofiler(
  gene_set = prob_all_4,
  background = background,
  category = "KEGG",
  color = "#F39C12",
  y_title = "KEGG Pathways"
)

# Combine Reactome and KEGG for GProfiler
if (!is.null(gprofiler_reactome) && !is.null(gprofiler_kegg)) {
  gprofiler_combined <- gprofiler_reactome / gprofiler_kegg
} else if (!is.null(gprofiler_reactome)) {
  gprofiler_combined <- gprofiler_reactome
} else if (!is.null(gprofiler_kegg)) {
  gprofiler_combined <- gprofiler_kegg
} else {
  gprofiler_combined <- NULL
}

# Display plots (if they are not NULL)
if (!is.null(cluster_combined)) print(cluster_combined)
if (!is.null(gprofiler_combined)) print(gprofiler_combined)

sessionInfo()
R version 4.3.0 (2023-04-21 ucrt)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 11 x64 (build 22631)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/Chicago
tzcode source: internal

attached base packages:
[1] stats4    stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
 [1] ReactomePA_1.46.0
 [2] patchwork_1.3.0
 [3] gprofiler2_0.2.3
 [4] DOSE_3.28.2
 [5] TxDb.Hsapiens.UCSC.hg38.knownGene_3.18.0
 [6] RColorBrewer_1.1-3
 [7] clusterProfiler_4.10.1
 [8] pheatmap_1.0.12
 [9] qvalue_2.34.0
[10] BiocParallel_1.36.0
[11] Homo.sapiens_1.3.1
[12] TxDb.Hsapiens.UCSC.hg19.knownGene_3.2.2
[13] org.Hs.eg.db_3.18.0
[14] GO.db_3.18.0
[15] OrganismDbi_1.44.0
[16] GenomicFeatures_1.54.4
[17] GenomicRanges_1.54.1
[18] GenomeInfoDb_1.38.8
[19] AnnotationDbi_1.64.1
[20] IRanges_2.36.0
[21] S4Vectors_0.40.1
[22] Biobase_2.62.0
[23] BiocGenerics_0.48.1
[24] edgeR_4.0.1
[25] limma_3.58.1
[26] cluster_2.1.6
[27] ggfortify_0.4.17
[28] lubridate_1.9.3
[29] forcats_1.0.0
[30] stringr_1.5.1
[31] dplyr_1.1.4
[32] purrr_1.0.2
[33] readr_2.1.5
[34] tidyr_1.3.1
[35] tibble_3.2.1
[36] ggplot2_3.5.1
[37] tidyverse_2.0.0

loaded via a namespace (and not attached):
  [1] splines_4.3.0               later_1.3.2
  [3] BiocIO_1.12.0               bitops_1.0-7
  [5] ggplotify_0.1.2             filelock_1.0.3
  [7] polyclip_1.10-7             graph_1.80.0
  [9] XML_3.99-0.17               lifecycle_1.0.4
 [11] rprojroot_2.0.4             lattice_0.22-5
 [13] MASS_7.3-60                 magrittr_2.0.3
 [15] plotly_4.10.4               sass_0.4.9
 [17] rmarkdown_2.29              jquerylib_0.1.4
 [19] yaml_2.3.10                 httpuv_1.6.15
 [21] cowplot_1.1.3               DBI_1.2.3
 [23] abind_1.4-8                 zlibbioc_1.48.0
 [25] ggraph_2.2.1                RCurl_1.98-1.13
 [27] yulab.utils_0.1.8           tweenr_2.0.3
 [29] rappdirs_0.3.3              git2r_0.35.0
 [31] GenomeInfoDbData_1.2.11     enrichplot_1.22.0
 [33] ggrepel_0.9.6               tidytree_0.4.6
 [35] reactome.db_1.86.2          codetools_0.2-20
 [37] DelayedArray_0.28.0         xml2_1.3.6
 [39] ggforce_0.4.2               tidyselect_1.2.1
 [41] aplot_0.2.3                 farver_2.1.2
 [43] viridis_0.6.5               matrixStats_1.4.1
 [45] BiocFileCache_2.10.2        GenomicAlignments_1.38.2
 [47] jsonlite_1.8.9              tidygraph_1.3.1
 [49] tools_4.3.0                 progress_1.2.3
 [51] treeio_1.26.0               Rcpp_1.0.12
 [53] glue_1.7.0                  gridExtra_2.3
 [55] SparseArray_1.2.4           xfun_0.50
 [57] MatrixGenerics_1.14.0       withr_3.0.2
 [59] BiocManager_1.30.25         fastmap_1.1.1
 [61] digest_0.6.34               timechange_0.3.0
 [63] R6_2.5.1                    gridGraphics_0.5-1
 [65] colorspace_2.1-0            biomaRt_2.58.2
 [67] RSQLite_2.3.3               generics_0.1.3
 [69] data.table_1.14.10          rtracklayer_1.62.0
 [71] htmlwidgets_1.6.4           prettyunits_1.2.0
 [73] graphlayouts_1.2.0          httr_1.4.7
 [75] S4Arrays_1.2.1              scatterpie_0.2.4
 [77] graphite_1.48.0             whisker_0.4.1
 [79] pkgconfig_2.0.3             gtable_0.3.6
 [81] blob_1.2.4                  workflowr_1.7.1
 [83] XVector_0.42.0              shadowtext_0.1.4
 [85] htmltools_0.5.8.1           fgsea_1.28.0
 [87] RBGL_1.78.0                 scales_1.3.0
 [89] png_0.1-8                   ggfun_0.1.8
 [91] knitr_1.49                  rstudioapi_0.17.1
 [93] tzdb_0.4.0                  reshape2_1.4.4
 [95] rjson_0.2.23                nlme_3.1-166
 [97] curl_6.0.1                  cachem_1.0.8
 [99] parallel_4.3.0              HDO.db_0.99.1
[101] restfulr_0.0.15             pillar_1.10.1
[103] grid_4.3.0                  vctrs_0.6.5
[105] promises_1.3.0              dbplyr_2.5.0
[107] evaluate_1.0.3              cli_3.6.1
[109] locfit_1.5-9.8              compiler_4.3.0
[111] Rsamtools_2.18.0            rlang_1.1.3
[113] crayon_1.5.3                labeling_0.4.3
[115] plyr_1.8.9                  fs_1.6.3
[117] stringi_1.8.3               viridisLite_0.4.2
[119] munsell_0.5.1               Biostrings_2.70.1
[121] lazyeval_0.2.2              GOSemSim_2.28.1
[123] Matrix_1.6-1.1              hms_1.1.3
[125] bit64_4.0.5                 KEGGREST_1.42.0
[127] statmod_1.5.0               SummarizedExperiment_1.32.0
[129] igraph_2.1.1                memoise_2.0.1
[131] bslib_0.8.0                 ggtree_3.10.1
[133] fastmatch_1.1-4             bit_4.0.5
[135] gson_0.1.0                  ape_5.8
